- New Product Release: tZT-P4C4, Wireless 4-channel Isolated Digital Input and 4-channel Isolated Digital Output Module
Nov. 12, 2018 -
- Introduction:The tZT-P4C4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocouple isolation. The tZT-P4C4 supports sink-type output with short circuit protection, while input is source-type. All input channels can be used a 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
The tZT series products of ICP DAS have the advantage of low cost and low power consumption of ZigBee. Provide wireless communication capability up to 300 meters (LOS) standard transmission distance. Coupled with the dynamic mesh network, users can easily catch DIO data in difficult-to-wire environments. - Features:
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4 / ZigBee 2007 Pro Specifications
- Wireless Transmission Range up to 300 m
- Adjustable RF Transmission Output Power
- GUI Configuration Software (Windows Version)
- Supports AES-128 Encryption for the Wireless Communication (Passive)
- Supports ZigBee Repeater Function
- 4 Digital Input Channels and 4 Digital Output Channels
- All Digital Input Channels can be used as 16-bit Counters
- Sink-type Digital Output Channels with Overload Protection
- Surge and ESD Protection
- Configurable Power-on Value and Safe Value Settings
- DIN-Rail MountableSupports 16 segments setting of RF channels
-
System Specifications:
Communication Interface Wireless Standards ZigBee 2007 Pro Transmission Power 11dBm (Max. 19dBm) 2.4GHz Antenna 2.4 GHz - PCB Antenna (3dBi, 50Ω) Transmission Range(LOS) 300m Protocols Supports DCON and ModBus Watchdog Module(1.6seconds),Communication(Programmable) LED Indicators ZigBee Communication 1LED, Green Power 1LED, Red EMS Protection ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal EFT (IEC 61000-4-4) ±1 kV for Power Power Input Voltage Range +10 VDC to +30 VDC Power Consumption 1W Max. Mechanical Dimensions(W x L x H) 52mm x 98mm x 27mm Installation DIN-Rail Mounting Environment Operating Tempertaure -25 to +75 °C Storage Tempertaure -30 to +80 °C Humidity 10 to 95% RH(Non-condensing) -
I/O Specifications:
Digital Input/Counter Input Channels 4 Type Wet Contact (Source) On Voltage Level +6 VDC to +50 VDC Off Voltage Level Max. +5 VDC Counters Channels 4 Max. Counts 65535 (16-bit) Max. Input Frequency 100Hz Min. Pulse Width 5ms Input Impedance 10 KΩ , 0.66W Overvoltage Protection ± 70 VDC Digital Output Output channels 4 Type Isolated Open Collector (Sink) Load Voltage +3.5 to +50 VDC Max. Load Current 700mA / channel Overvoltage Protection Yes Overload Protection Yes Power On Value Yes, Programmable Safe Value Yes, Programmable - Applications:
- Ordering Information:

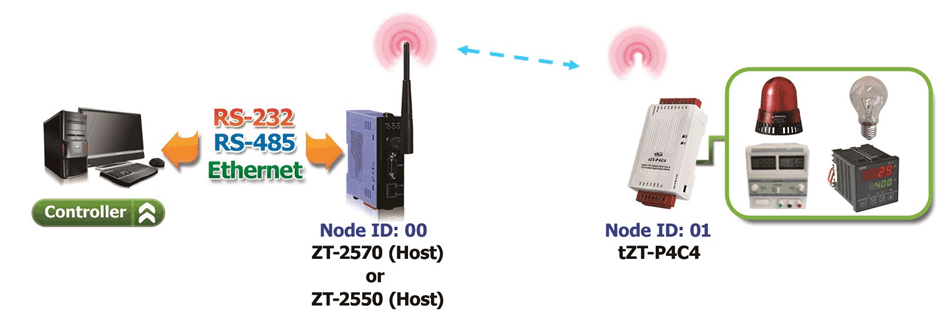

tZT-P4C4 CR Wireless 4-channel Isolated Digital Input and 4-channel Isolated Digital Output Module (ZigBee Router) (RoHS) Important Note: ZigBee Data Acquisition modules require a ZigBee host converter to coordinate the data transmission path. Remember to order a ZT-2550 or ZT-2570 ZigBee host converter when purchasing ZigBee Data Acquisition Products. - Related Products:
MDR-20-24 24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting ZT-2510 CR ZigBee Repeater (Slave, ZigBee Router) (RoHS) ZT-2550 CR RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) (RoHS) ZT-2570 CR Ethernet/RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) (RoHS) -
