- New Product Release: HRT-370 (HART signal Filter) (Upright)
Nov. 12, 2018 -
-

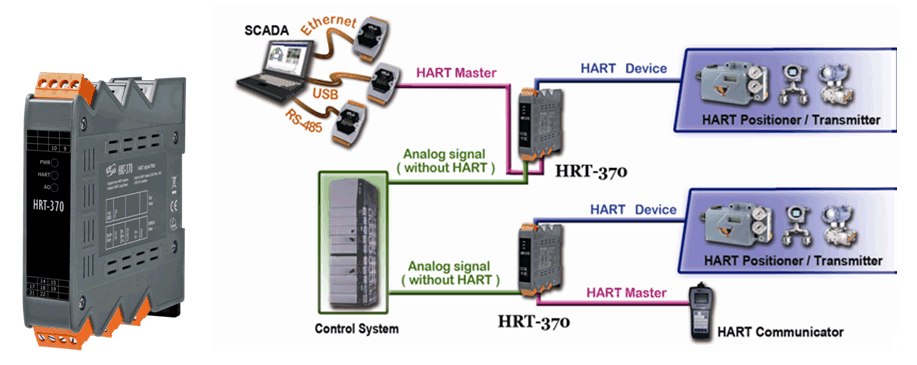

HRT-370 is a HART signal filter specially designed to solve the issue that analog signal gets interfered while additional HART signal adding to communication process. When connecting HRT-370 to a HART instrument, it splits the input HART signal to two output channels, one keeps the original HART signal and another filter the HART signal out to output pure analog signal. Therefore, by applying HRT-370, the collection and processing of both HART and analog current data can be easier and more precise.
- Features:
- 1 analog current output (HART signal filter) channel
- 1 by pass HART signal channel
- Support HART Burst mode
- Support point-to-point HART mode
- Allow two HART masters
- Support Loop Power function (module provides +30V)
- Provide PWR/ HART/ AO indication LED
- 4KV ESD Protection
- 250Ω load resistor
- Support din-rail installation
-
For more information, please visit the below website:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/hart/filter/hrt-370.html
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/hart/hart_selection_guide.html
