- New Product Release: I-7565M-HS
High Speed USB to 2- port CAN bus Converter
Nov. 12, 2018 -
-

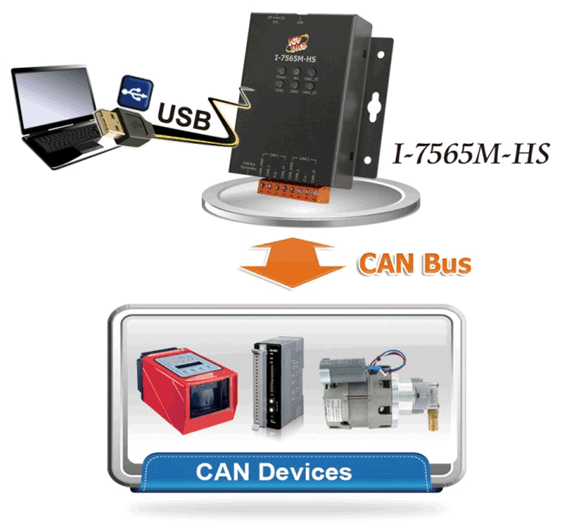

I-7565M-HS is a high speed USB to CAN converter with two CAN channels. It provides faster CAN bus communication performance than I-7565 and it supports CAN2.0A/2.0B protocol and different baud rates from 5 kbps to 1000 kbps. The important feature of I-7565M-HS is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565M-HS to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN bus network easier and quicker by applying I-7565M-HS. The application fields can be CAN bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation.
- Features:
- Compatible with USB 2.0 (High Speed)
- Compatible with the ISO 11898-2 standard
- Support both CAN2.0A and CAN2.0B specifications
- No external power supply (powered by USB)
- Programmable CAN Bus baud rate from 10kbps to 1000kbps
- Support CAN Bus message filter configuration
- Timestamp of CAN message with at least ±10us precision
- Watchdog inside
- Provide PWR, CAN Tx/Rx and CAN status indication LEDs
- Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
- Support firmware update via USB
- Provide utility tool for users module setting and CAN Bus communication testing conveniently
- Provide API library for user program development
-
USB to CAN Bus Converters Comparison Table:I-7565M-HSI-7565-H2I-7565-H1I-7565
CAN Interface CAN Connector Screwed terminal blockScrewed terminal block9-pin male D-Sub9-pin male D-SubChannel number 2211Baud Rate (bps) 10k ~ 1M bps and user-defined5k ~ 1M bps and user-defined5k ~ 1M bps and user-defined10k ~ 1M bpsCAN Filter YesYesYesYesCAN FIFO 512 frames128 frames (for each CAN port)256 frames1000 framesMax FPS (@1Mbps) 150003000 (Total CAN ports)3000279 to 360USB Interface USB Type USB Type BUSB Type BUSB Type BUSB Type BUSB Speed 480Mbps12Mbps12Mbps110 ~ 921600 bpsSpecification USB 2.0 (High Speed)USB 1.1 and USB 2.0 (Full Speed)USB 1.1 and USB 2.0 (Full Speed)USB 1.1 and USB 2.0 (Full Speed)USB FIFO 512 frames100 frames100 frames900 framesMisc. Casing MetalPlasticPlasticPlastic -
