- New Product Release: ECAT-2610

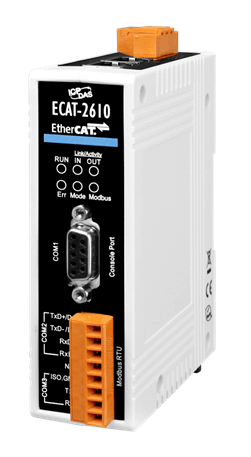

EtherCAT to Modbus RTU Gateway
Aug. 20, 2018 -
Introduction:Integrate your serial RS-232/422/485 based industrial devices and equipment to an EtherCAT control system without the need for any changes to the device. Just connect, configure and it's finished.

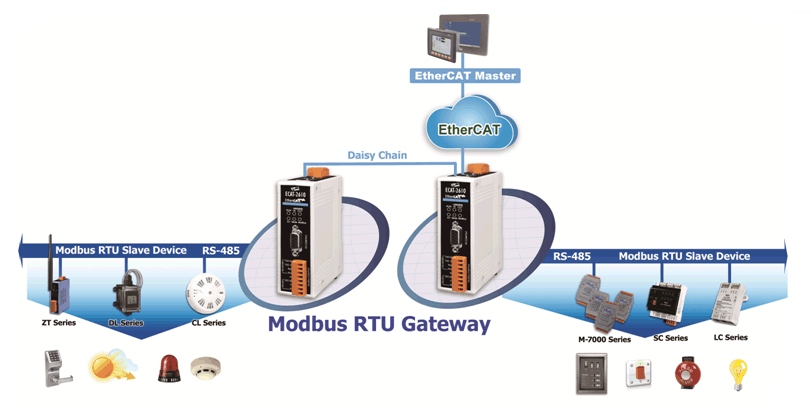

The ECAT-2610 Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to EtherCAT. The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data. For more information, please refer to the following websites:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/ethercat/ethercat_intro.html
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/ethercat/gateway/ecat-2610.html -
- Features:
- Powerful MCU handles efficient network traffic
- Integrate RS-232/422/485 serial device to EtherCAT
- 2 x RJ-45 bus interface
- Supports maximum 256 WORD Input and 256 WORD Output Data
- Supports maximum Baud Rate 115200 bps
- Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
- Requires no hardware or software changes to be made to the connected device
- Compatible with all PLCs with EtherCAT support
- Performs complete serial protocol conversion, no PLC function blocks required
- RoHS compliant
For more relative products information, please visit the EtherCAT Selection Guide web site.
