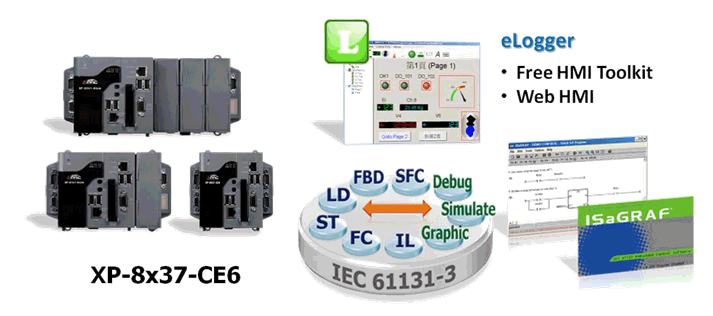

- ISaGRAF New Product: XP-8x37-CE6
WinCE 6.0 Based ISaGRAF XPAC
Aug. 20, 2018 - Introduction:The XP-8x37-CE6 Series (XP-8037-CE6/XP-8137-CE6/XP-8337-CE6/XP-8737-CE6) is the new generation ISaGRAF PAC from ICP DAS. Each is equipped with an x86 CPU (1 GHz) dual-core running a Windows Embedded CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots (0/1/3/7)that can be used to integrate high performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series).
The benefits of running Windows CE 6.0 on an XPAC device include hard real-time capabilities, small core size, fast boot speed, interrupt handling at a deeper level, and achievable deterministic control. XPAC devices are also capable of running ISaGRAF and PC-based control software, such as Visual Basic .NET, Visual C#, etc., providing all of the best features of both traditional PLCs and Windows capable PCs. - Features:
- x86 CPU, 1.0 GHz, dual-core
- Windows CE 6.0
- Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
- Hard Real-Time Capability
- VGA Port Output
- Modbus RTU/TCP (Master, Slave)
- Support eLogger HMI
- Redundant Power Inputs
- Support Motion Control - Using I-8094F/8094/8092F
- Operating Temperature: -25 to +75 °C
- Instructions for upgrading from XP-8x47-CE6 to XP-8x37-CE6
Specification Comparison Specification XP-8x47-CE6 (Phased out) XP-8x37-CE6 (New) OS Windows Embedded Compact 6 CPU AMD LX800 (500 MHz) x86 (1.0 GHz, dual-core) RAM size 512 MB 2 GB DDR3 ROM size 4 GB 32 GB Non-volatile Memory 512 KB (dual-battery backup) 512 KB (retain memory without battery support) Ethernet 10/100 Base-TX * 2 10/100/1000 Base-TX * 2 USB USB1.1 * 2 USB2.0 * 4 I/O Slots 0/3/7 0/1/3/7 -
More ISaGRAF related products:● The ISaGRAF Website:
http://www.icpdas.com/root/product/solutions/softplc_based_on_pac/isagraf/isagraf.html
● The XP-8x37-CE6 Page:
http://www.icpdas.com/root/product/solutions/softplc_based_on_pac/isagraf/isagraf_pac/xp-8x37-ce6.html
● The XP-8x37-CE6 Sheet:
http://www.icpdas.com/root/product/solutions/softplc_based_on_pac/isagraf/download.html
Compared with the XP-8x37-CE6, the dimensions and the peripheral communication interface are completely compatible with the XP-8x47-CE6. So it can replace XP-8x47-CE6 directly.
For more differences and migrations between XP-8x47-CE6 and XP-8x37-CE6, please visit:
http://www.icpdas.com/root/product/solutions/pac/xpac-atom/xp-8000_migration.html
