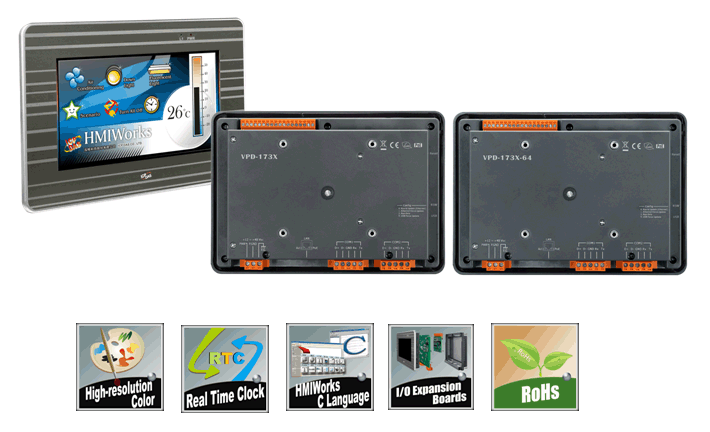

- New Product Release: VPD-173X/VPD-173X-64
7” Touch HMI Device with RS-232/485, USB, Ethernet (PoE), RTC and support XV-board (RoHS)
Jul. 30, 2018 - Introduction:VPD-173X/173X-64 series HMI is designed for building, home and industrial automation. VPD-173X/173X-64 series HMI is equipped with 7” high resolution TFT color touch screen which can be seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
HMIWorks is a free development software for the VPD series HMI devices; it provides Ladder Designer for PLC users, and C language environment for IT users. In general condition, it only takes no more than 30 minutes to learn how to create an application program of VPD-series devices when using Ladder Designer. - Features:The following is the features comparisons table for the VPD-173X/173X-64 series models:
-
ModelMemory ExpansionImage Storage CapacityCOM PortEthernetLCDRTCI/O Expansion BoardsIngress ProtectionPower Input
VPD-173X 16 MB SDRAM/16 MB Flash18COM1 : RS-232 or RS-485
COM2: RS-232 or RS-485Ethernet
(10/100 Mbps)7” TFT (Resolution 800 x 480, 65536 colors)YesYesFront Panel: IP65+12 ~ 48 VDC or PoEVPD-173X-64 64 MB SDRAM/64 MB Flash84 - The following is the I/O expansion board selection guide for the XV-Board series models:
DIO Expansion ModelDIDOChannelTypeSink/SourceChannelSink/SourceXV107 8WetSource8SinkXV107A 8WetSink8SourceXV110 16Dry/WetSink/Source--XV111 ---16SinkXV111A ---16SourceXV116 5WetSink/Source6Power Relay, Form A -
Multi-Function Expansion ModelAIAODIDOChannelRangeChannelRangeChannelTypeSink/SourceChannelSink/SourceXV306 4±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA--4WetSink/Source4Relay, FormA, 6AXV307 --20 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA~ +20 mA, +4 mA ~ +20 mAXV308 8±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA--DI+DO=8Dry/WetSourceDI+DO=8SinkXV310 420 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA~ +20 mA, +4 mA ~ +20 mA4Dry/WetSource4Source -
For more information, please visit the VPD-173X/173X-64 web site.
