- New Product Release: WLS-T11
Wireless Locating System Transmitter
May 21, 2018 -
WLS-T11 is a 2.4GHz wireless transmitter (called Tag) powered by battery, it can automatically broadcast 2.4GHz wireless location packages to the WLS-R01. WLS-T11’s wireless frequency use ISM 2.4GHz global common frequency band which have 16 channels between 2.405GHz and 2.48GHz., each channel is separated by 5MHz, and WLS-T11 supports 16 sectors of RF power setting. The user can use the button to adjust the above settings.
In addition, WLS-T11 supports help button, low battery power indicator, and built in Node ID, 3dBi directional PCB antenna and other user-friendly design. It is with compact size and is easy for the user to carry it. The user can also send a distress signal in an emergency situation, so that the related personnel can reach where the user is located immediately and response in real-time.

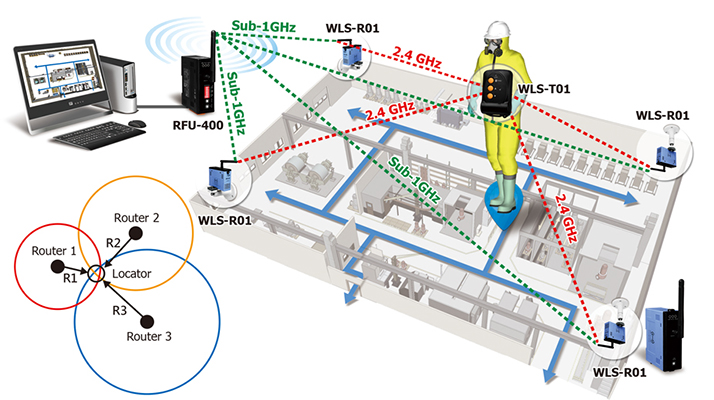

The wireless transmission range (line of sight, LOS) of WLS-T11 is 50 meters, and WLS-T11 uses low power consumption design architecture, when the user get the battery (4. 2 VDC) fully charge and the wireless transmission interval is 3 seconds, operating temperature in -10℃ to +60℃, the use of time can be up to 30 days. If the battery is running low, the user can charge it by USB cable. With the above features, WLS-T11 is very suitable for use in item tracking, personnel movements in hazardous areas, factory regional management and other applications. - Features:
- Supports the button help function
- Supports 16 segments setting of RF channels
- Supports 16 segments setting of RF power
- Built in battery low power LED indicator
- Built in 2.4GHz 3dBi PCB directional antenna
- ISM 2.4GHz operating frequency
- Direct Sequence Spread Spectrum (DSSS) RF technology
- Wireless transmission range up to 50 m (Line of Sight)
- Built-in chargeable Li-ion battery
- Battery charge cycle: 30 days (3 second Tx Interval)
-
Specification:
Wireless Modulation OQPSK (Offset Quadrature Phase-shift Keying) Spread Spectrum DSSS (Direct-Sequence Spread Spectrum) RF Channels 16 Transmission Power 16±1dBm (Default)/17dBm (Max.) Wireless frequency 2.4GHz Antenna 2.4GHz-3dBi PCB Directional Antenna Transmission Range (Line of Sight, LOS) 50 m (Typical) LED Indicators Press/Help/Low battery power 1 LED, Red EMS Protection ESD ±4 kV Contact for Screw EFT (IEC 61000-4-4) ±1 kV for Power Power Required Supply Voltage Rechargeable Li-ion battery Charge Interface Micro USB Battery Usage Life 30 days (3 second Tx Interval) Mechanical Dimensions(L x W x H, mm) 90 mm x 58.5 mm x 8.5 mm Installation Hook Environment Operating Temperature -20 to +60°C Storage Temperature -10 to +35°C Relative Humidity 10 to 75% RH(Non-condensing) - Applications:
- Ordering Information:
WLS-T11 CR Wireless Location System Transmitter (RoHs) Important Note: The transmitter of wireless location system be used together with the receiver and the converter, please refer to WLS-R01 and RFU-400. - Accessories:
WLS-T01 CR Wireless Locating System Transmitter (RoHs) WLS-T02 CR Wireless Locating System Transmitter (RoHS) WLS-R01 CR Wireless Locating System Receiver (RoHs) WLS-CFG CR Wireless Location System Configurator (RoHS) RFU-400 CR RS-232/RS-485 to 429 MHz Radio Modem (RoHS)
For more information about the product, please refer to the following website:
http://m2m.icpdas.com/WLS-T11.htmlRelated Wireless products:
