- New Product Release: XP-8031-CE6
Windows Embedded Compact 6 based XPAC
May 03, 2018 - Introduction:XP-8031-CE6 is a new generation Windows CE 6.0 based PACs from ICP DAS. It is equipped with an x86 CPU (1 GHz, dual-core), a variety of connectivity (VGA, USB, Ethernet RS-232/485). The benefits of running Windows CE 6.0 on XPAC include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. XPAC is also capable of running PC-based control software such as Visual Basic .NET, Visual C#, etc. It has all of the best features of both traditional PLCs and Windows capable PCs.

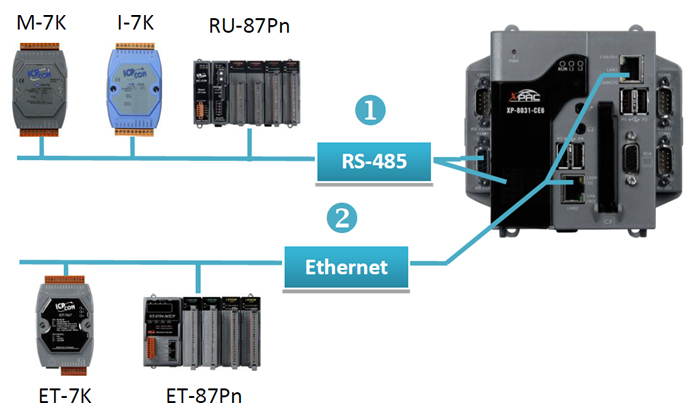

- Multi-Communication InterfaceXP-8031-CE6 supports several I/O communication interfaces and can quickly integrate various devices:
1. Ethernet
2. RS-232/485 - Features:
- Windows Embedded Compact 6
- x86 CPU, 1 GHz, dual-core
- Memory Size:
○ DDR3 SDRAM (2 GB), Built-in Flash Disk (32 GB)
○ EEPROM (16 KB), CF Card (8 GB)
○ Non-volatile RAM (512KB) - VGA Port x 1, USB 2.0 port x 2, Series port (RS-232/RS-485) x 4
- Dual Ethernet Ports (10/100M/1G)
- For more information about XP-8X31-CE6, please visit following links:
○ XP-8x31-CE6 Datasheet: http://ftp.icpdas.com/pub/cd/xp-8x3x-ce6/document/data_sheet/
○ XP-8x31-CE6 Web Page: http://www.icpdas.com/root/product/solutions/pac/xpac-atom/xp-8x31-ce6.html
- Instructions for upgrading from XP-8041-CE6 to XP-8031-CE6
Specification Comparison Specification XP-8041- CE6 (Phased out) XP-8031-CE6 (New) OS Windows Embedded Compact 6 CPU AMD LX800 (500 MHz) x86 (1.0 GHz, dual-core) RAM size 512 MB 2 GB DDR3 ROM size 4 GB 32 GB Non-volatile Memory 512 KB (dual-battery backup) 512 KB (retain memory without battery support) Ethernet 10/100 Base-TX * 2 10/100/1000 Base-TX * 2 USB USB1.1 * 2 USB2.0 * 4 I/O Slots 0 0
• Compared with the XP-8031-CE6, the dimensions and the peripheral communication interface are completely compatible with the XP-8041-CE6. So it can replace XP-8041-CE6 directly.
For more differences and migrations between XP-8041-CE6 and XP-8031-CE6, please visit:
http://www.icpdas.com/root/product/solutions/pac/xpac-atom/xp-8000_migration.html
