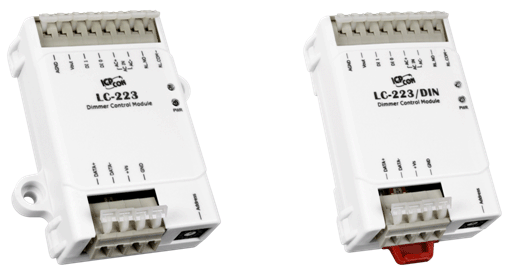

- New Product Release: LC-223, LC-223/DIN
1-channel Dimmer Control Module with 2-channel Dry Contact Input Trigger
Mar. 29, 2018 -

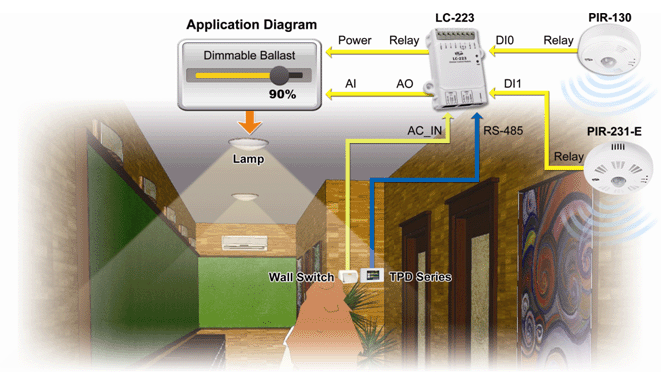

Introduction:The LC-223 is an easy-to-use dimming ballast control module that can be easily installed and operated without requiring specialist knowledge or skills. The brightness of a fluorescent lamp can be controlled using a dimmer, either via digital input or a host controller. The digital input can be used to directly control the light value of the luminous flux in sequence from 10% to 100%, without the need for a remote host controller. 4 kV ESD protection and 2500 VDC intra-module isolation are also provided. When required, communication with the LC-223 is programmable based on the Modbus RTU protocol, with the added benefit that different addresses can be set via hardware configuration.
- Features:
- Provide Power Relay Output to Turn ON/OFF the Dimming Ballast
- Provide the Wall Switch Function to Control the Brightness of the Dimming Ballast
- Isolated Analog Output(0 to 20 mA, 0 to 10 V, 1 to 10 V) for Dimming Control
- Provide the Dry Contact to Trigger the Brightness of the Dimming Ballast
- Supports Modbus RTU and DCON Protocols
- 2500 VDC Intra-Module Isolation
- ±4 kV ESD and EFT Protection
- Tiny Form-Factor with Easy Screw and DIN-Rail Mounting
- Ordering information:
Model Description LC-223 CR 1-channel Dimmer Control Module with 2-channel Dry Contact Input Trigger (RoHS) LC-223/DIN CR 1-channel Dimmer Control Module with 2-channel Dry Contact Input Trigger (DIN Rail mount) (RoHS)
For more details, please visit:
http://www.icpdas.com/root/product/solutions/remote_io/rs-485/lighting_control/lc-223.html
