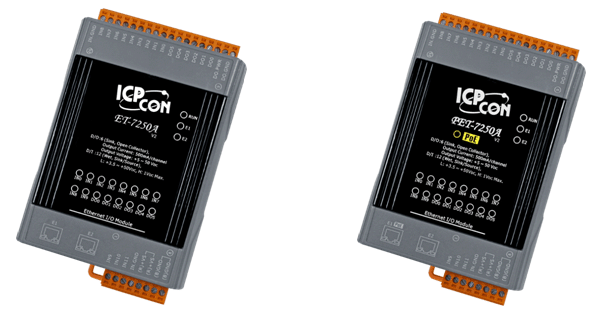

- New Product Release: ET-7250A/PET-7250A
Ethernet I/O Module with 2-port Ethernet Switch, with 12-channel Digital Input and 6-channel Digital Output
Jan. 31, 2018 -
Introduction:The ET-7250A and PET-7250A provide full networking capabilities, and a variety of I/O functions, together with a web-based user interface server for easy configuration. Both modules can be remotely controlled using the Modbus TCP/UDP protocol via an Ethernet network. This helps the ET-7250A and PET-7250A to be well integrated with HMI, SCADA, PLC and other industrial control software systems.

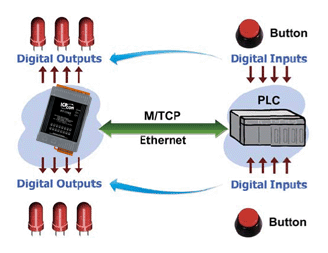

I/O Pair Connection
The ET-7250A and PET-7250A provide 6 sink-type digital output channels and 12 wet/dry contact digital input channels, each of which is able to be used as a 32-bit counter.
The DI channels and DO channels can be paired over the Ethernet. That is to say, when the remote DI channels get the ON signal, the corresponding local DO will be turned on; while the DI channels get OFF, the corresponding local DO channels will also become OFF, it does not require another controller to implement the function. -

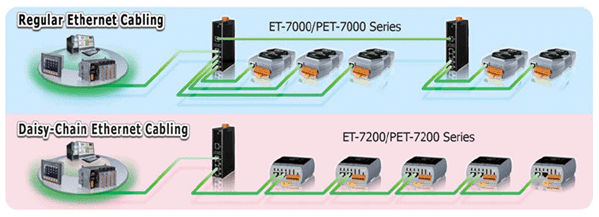

Daisy-Chain Ethernet CablingThe ET-7250A and PET-7250A include two built-in Ethernet switch ports, which are helpful to reduce implementation costs. No additional switch to be installed or maintained when you need to daisy chain the devices or to extend the network.
-
Power over Ethernet (PoE)The PET-7250A supports IEEE 802.3af Power-Over-Ethernet (Class 1) specifications. By connecting to network devices that support the IEEE 802.3af PoE standard, power can be supplied via a copper Ethernet cable.
- Features:
- Web HMI
- Communication Security
- Built-in I/O
o DI/Counter: 12 Channels
o DO: 6 Channels - I/O Pair Connection
- 2-port Ethernet Switch for Daisy-Chain Topology
- Support for both Modbus TCP and Modbus UDP Protocols
- Dual Watchdog
- Wide Operating Temperature Range: -25 to +75°C
-
ModelET-7250APET-7250A
Communication Ethernet Port 2 x RJ-45, 10/100 Base-TX, Swtich PortsPoE -YesProtocol Modbus/TCP, Modbus/UDPSecurity ID, Password and IP FilterEthernet Channels 12Type Wet/DryOn Voltage Level 1 VDC Max.Off Voltage Level +3.5 VDC ~ +50 VDC Max.Digital Output Channels 6Type Isolated Open CollectorMax. Load Current 500 mA/channelLoad Voltage +5 VDC to +50 VDC - Visit the Introduction page
