- New Product Release: BLE-USB

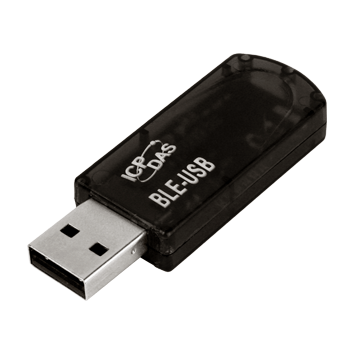

USB to Bluetooth Low Energy Converter
Jun. 28, 2017 -

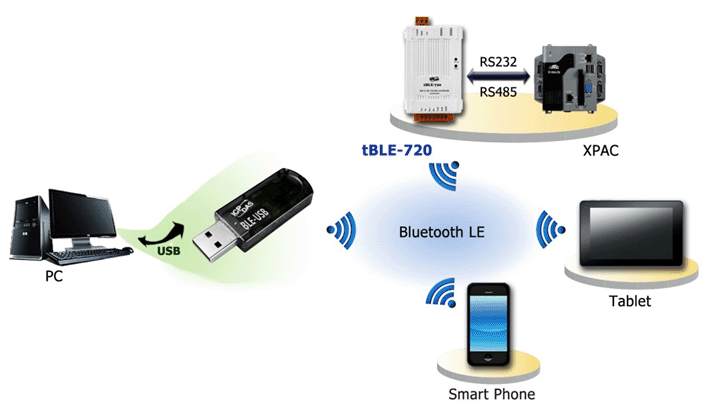

Introduction:The BLE-USB module is small-sized wireless Bluetooth low energy (LE) converter based on the Bluetooth 4.0 standard that allow USB interface to be converted to Bluetooth LE piconet network. The BLE-USB has two transmission modes – advertisement and connection mode. User can use AT command to set the role of Bluetooth LE and some connection parameters (e.g. RF power level, broadcast parameters and slave amount).
- Features:
- Frequency: ISM 2.4 GHz
- Standard: Bluetooth 4.0
- Fully Compliant with the USB 1.1/2.0 (High Speed)
- Supports OTA firmware upgrade
- Supports baud rate: 9600 to 115200 bps
- Supports multiple connections – Max slave is 3
- Supports two types of communication- advertisements and connection
- Provides AT commands to setup the module
- Provides status / RF link indication LEDs
- No External Power Supply required
- Operating Temperatures, -25 °C to +75 °C
- Applications:

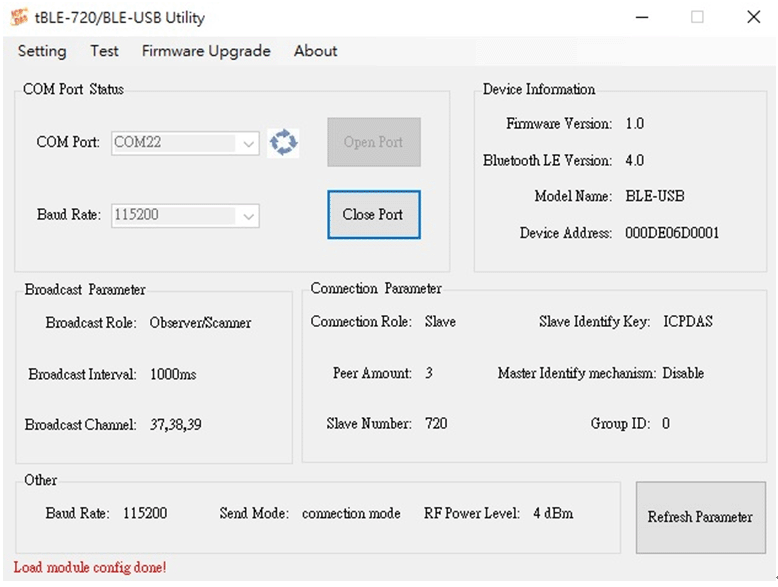

- Utility Features:ICP DAS provides the BLE-USB configuration utility based on Windows OS.
- Parameters configuration
- Firmware upgrade
- Easy to test transmit/receive function
- Setting files management
For more information, please visit the following website:
http://m2m.icpdas.com/BLE-USB.html
