- New Product Release: XP-8331-CE6, XP-8731-CE6
Windows Embedded Compact 6 based XPAC

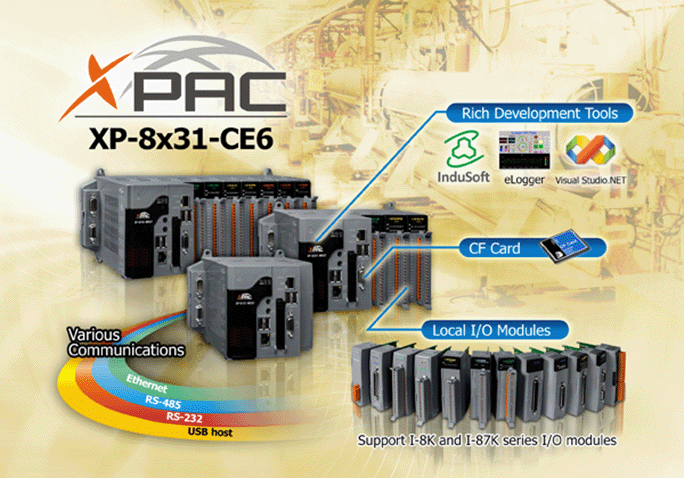

Mar. 27, 2017 - IntroductionXP-8x31-CE6 Series is the new generation Windows CE 6.0 based PACs of ICP DAS. It is equipped with an x86 CPU (1 GHz, dual-core), various connectivity (VGA, USB, Ethernet RS-232/485) and 1/3/7 I/O slots for high performance parallel I/O modules (high profile I-8K Series) and serial I/O modules (high profile I-87K series). The benefits of running Windows CE 6.0 on XPAC include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. XPAC is also capable of running PC-based control software such as Visual Basic .NET, Visual C#, …. etc. It has all of the best features of both traditional PLCs and Windows capable PCs.
Local I/O and Communication Expansion ModulesThere are 1, 3, 7 slot options provided to expand the local I/O. And the I/O modules can be parallel bus type (I-8K series) or serial bus type (I-87K series).
The I/O slots support parallel bus type (I-8K series) and serial bus type (I-87K series) I/O modules. These modules provides wide-range options for different I/O combination to implement all kinds of I/O functions such as: AI, AO, DI, AO, counter input, frequency input, PWM output, motion control, memory, communication, etc.
I-8K & I-87K:
http://www.icpdas.com/root/product/solutions/remote_io/rs-485/i-8k_i-87k/i-8k_i-87k_selection.html#aMulti-Communication InterfaceThere are several communication interfaces can be used to expand I/O and connect to external devices:
1. Ethernet
2. RS-232/485 - Features:
- Windows Embedded Compact 6
- x86 CPU, 1 GHz, dual-core
- Memory Size:
○ DDR3 SDRAM (2 GB), Built-in Flash Disk (32 GB)
○ EEPROM (16 KB), CF Card (8 GB)
○ Non-volatile RAM (512KB) - VGA Port x 1, USB 2.0 port x 2, Series port (RS-232/RS-485) x 4
- Dual Ethernet Ports (10/100M/1G)
- Instructions for upgrading from XP-8x41-CE6/XP-8x41-Atom-CE6 to XP-8x31-CE6
Specification Comparison SpecificationXP-8x41-CE6XP-8x41-Atom- CE6 (Phased-out)XP-8x31-CE6 (New)OS Windows Embedded Compact 6CPU AMD LX800 (500 MHz)Atom Z510 (1.1 GHz)x86 (1.0 GHz, dual-core)RAM size 512 MB512 MB DDR22 GB DDR3ROM size 4 GB8 GB32 GBNon-volatile Memory 512 KB (dual-battery backup)512 KB (dual-battery backup)512 KB
(retain memory without battery support)Ethernet 10/100 Base-TX * 210/100/1000 Base-TX * 210/100/1000 Base-TX * 2USB USB1.1 * 2USB2.0 * 4USB2.0 * 4Ethernet 0/3/71/3/71/3/7• Compared with the XP-8x41-Atom-CE6, the dimensions and the peripheral communication interface are completely compatible with the XP-8x41-Atom-CE6. So it can replace XP-8341-CE6 and XP-8x41-Atom-CE6 directly.
• The first version of OS (version 1.0.0.0) for XP-8x31-CE6 series doesn’t support interrupt function, thus I-8112W, I-8114W, I-8114iW, I-8142iW, I-8144iW,
I-8048W and I-8014W cannot be used on XP-8x31-CE6 at this moment. The next OS version will provide interrupt function.
For more information about XP-8X31-CE6, please visit following links:
XP-8x31-CE6 Datasheet: http://ftp.icpdas.com/pub/cd/xp-8x3x-ce6/document/data_sheet/
XP-8x31-CE6 Web Page: http://www.icpdas.com/root/product/solutions/pac/xpac-atom/xp-8x31-ce6.html
