New Product: ZT-2005-C8, Wireless 8-ch Thermistor Input Module

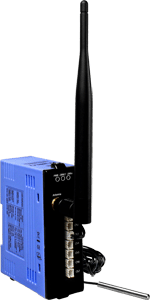

- Introduction:The ZT-2005-C8 is an 8-channel thermistor input module of ZigBee. It is based on the IEEE802.15.4 standard and it allows users to measure the temperature via a thermistor in a personal area ZigBee network. The typical transmission of ZT-2005-C8 is 700 meters (LOS, line of sight), with a transmission frequency range of between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings by using a combination of rotary and DIP switches. In addition, ZT-2005-C8 has 4 kV ESD protection and 1000 VDC intra-module isolation.
- Features:
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with IEEE802.15.4/ZigBee Specifications (ZigBee Pro/ZigBee 2007)
- Wireless Transmission Range up to 700 meters (Line of Sight)
- Supports ZigBee Repeater Function
- Supports DCON and Modbus RTU protocols
- 8-Channel Thermistor Input
- Resolution: 12 bits
- Accuracy: ±1°C
- DIN-Rail Mountable
- Operating Temperatures, -25 °C to +75 °C
- I/O Specification:
Input Channels 8 Input Type Thermistor (Only CA-021) Resolution 12 bits Sampling Rate 10 Hz total Accuracy ±1°C - Thermistor (CA-021):
Pipe φ6x60mm, stainless stell (SUS304) Wire 4.94m, UL2651 #24AWG*2C (TS) Connector 2pin, pitch 2.0mm Resistance R25=10K(Ω)±1% B Constant R25/85=3435(K)±1% Dissipation Factor ≧3(mW/°C) Thermal Time Constant ≦ 15 (sec) Measuring Temperature Range -40 to 105°C -
Applications:
- Relative Products:
ZigBee Converters ZT-USBC USB to ZigBee Converter (Host, ZigBee Coordinator) ZT-2550 RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) ZT-2551 RS-485/RS-232 to ZigBee Converter (Slave, ZigBee Router) ZT-2570 Ethernet/RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) ZT-2571 Ethernet/RS-485/RS-232 to ZigBee Converter (Slave, ZigBee Router) ZigBee Repeater ZT-2510 ZigBee Repeater (Slave, ZigBee Router) ZT-2530M ZigBee Bridge Module (ZigBee Coordinator and ZigBee Router) ZigBee Digital I/O ZT-2042 ZigBee 4-ch PhotoMOS Relay Output and 4-ch Open Collector Output Module ZT-2043 ZigBee 14-ch Isolated Digital Output Module ZT-2052 ZigBee 8-ch Isolated Digital Input Module with 16-bit Counters ZT-2053 ZigBee 14-ch Isolated Digital Input Module ZT-2060 ZigBee 6-ch Isolated Digital Input and 4-ch Relay Output Module ZigBee Analog I/O ZT-2015 ZigBee 6-ch RTD Input Module with 3-wire RTD Lead Resistance Elimination ZT-2017 ZigBee 8-channel Analog Input Module with High Voltage Protection ZT-2017C ZigBee 8-ch Current Input Module with High Common Voltage Protection ZT-2018 ZigBee 8-ch Analog Input Module with High Voltage Protection ZT-2024 ZigBee 4-ch Voltage/Current Output Module ZT-2026 ZigBee 4-ch Voltage Input, 2-ch Voltage Output and 2-ch Digital Output Module ZigBee Sniffer ZT-CHK ZigBee Sniffer ZigBee Digital Pair-connection ZT-2043-IOG ZigBee I/O Group (Pair-connection) Module with the 14-channel Isolated Digital Output ZT-2053-IOG ZigBee I/O Group (Pair-connection) Module with the 14-channel Isolated Digital Input ZT-2055-IOG ZigBee I/O Group (Pair-connection) Module with the 8-channel Isolated Digital Input and 8-channel Isolated Digital Output ZT-2060-IOG ZigBee I/O Group (Pair-connection) Module with the 6-channel Isolated Digital Input and 4-channel Relay Output (ZigBee Coordinator & ZigBee Router) -
Ordering Information:
ZT-2005-C8 CR Wireless 8-ch Thermistor Input Module (RoHS) Important Note:
1. Zigbee Data Acquisition modules need a Zigbee host converter to coordinate the data transmission route. Please remember to order a ZT-2550, ZT-2570 ZigBee host converter when you purchase Zigbee Data Acquisition products.
2. There is a thermistor attached in the package, if users want to purchase more thermistors, please refer to the accessories. - Accessories:
MDR-20-24 24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting ZT-2550 CR RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS) ZT-2570 CR Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS) ZT-2510 CR ZigBee Repeater (RoHS) External Antenna 2.4GHz External Antenna, RP SMA Male (Plug) Extension Cable 3S00x-1, RG58A/U x Meter Long RP-SMA male to RP-SMA Female Thermistor CA-021, NTC thermistor (-40°C ~ +105°C)
