- New Product: WF-2015 Wi-Fi I/O module with 6-ch RTD Input
-

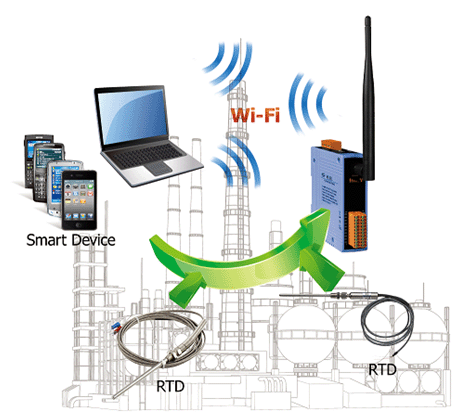

The WF-2015 is a Wi-Fi interface and 6-channel RTD input module for long-distance temperature measurement, and features automatic compensation for three-wire RTD sensor, meaning that accurate measurements can be obtained regardless of the length of the wires. The WF-2015 is fully RoHS-compliant and it features 4 kV ESD protection as well as 3000 VDC intra-module isolation. With the 802.11 network infrastructure, the WF-2015 provides an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2015 also supports Modbus/TCP & UDP protocols and the network encryption configuration, which makes perfect integration with SCADA software and users can easily and safely access the data from anytime and anywhere.
- Features:
- 6-channel RTD Input
- 3-wire RTD Input with Lead Resistance Elimination
- Open Wire Detection
- Individual Channel Configuration
- Compatible with IEEE 802.11b/g standards
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus/TCP and UDP protocols
- Support DHCP network configuration
- 4 kV ESD/EFT Protection
- 3000 VDC Intra-module Isolation
- Built-in Watchdog
- ICP DAS Wi-Fi I/O Product List
Module I/O Type Analog InputAnalog InputAnalog InputMulti FunctionDI Channel ---2Type ---DrySink/Source ---SourceDO Channel ---3Type ---Open CollectorSink/Source ---SinkAI Channel 68/16105Wiring 2/3-wireDifferential/
Single-EndedDifferentialDifferentialVoltage & Current Input -+/-10 V, +/-5 V,
+/-1 V, +/-500 mV,
+/-150 mV,
+4 ~ +20 mA ,
0 ~ +20 mA,
-20 mA ~ +20 mA±15 mV, ±50 mV,
±100 mV, ±150 mV,
±500 mV, ±1 V,
±2.5 V, ±5 V, ±10 V
±20 mA,±150 mV, ±500 mV,
±1 V, ±5 V, ±10 V
±20 mA ,
+0 ~ +20 mA,
+4 ~ +20 mASensor Input RTD: Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000-Thermocouple : J, K, T, E, R, S, B, N, C-AO Channel ---2Voltage & Current Output ---+0 ~ +5 VDC,
+0 ~ +10 VDC,
±5 VDC, ±10 VDC,
+0 ~ +20 mA,
+4 ~ +20 mA - Ordering information:
WF-2015 CR 6-channel RTD Input Wi-Fi I/O Module (RoHS)
For more information about the product, please refer to the following website:
http://m2m.icpdas.com/WF-2015.html
