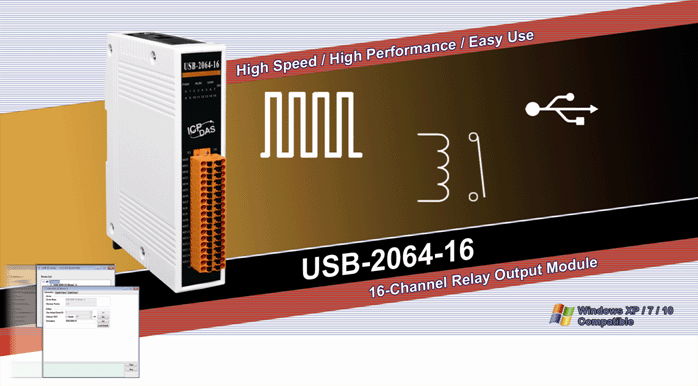

The USB-2064-16 provided by ICP DAS is a new solution of relay output via USB interface. It is similar to USB-2064 which provides easy USB plug-and-play operation and is equipped with power rating relay for automation applications. Comparing with the traditional PC-based card like PCI, PC/104 and ISA cards, users can achieve relay control more easily and quickly via USB-2064-16.
The USB-2064-16 is a full-speed USB device with 16-channel power relay module that supports more channels than USB-2064 (8-channel). It provides a power relay rating with 3A at 240VAC or 30VDC. This specification can satisfy most requirements for driving external controlled devices such as lights, fans, alarm systems and various electronic devices in industrial automation. Besides, the USB-2064-16 also features power-on value to customize the initial state. Moreover, the safety value can be used to secure the devices in the field.

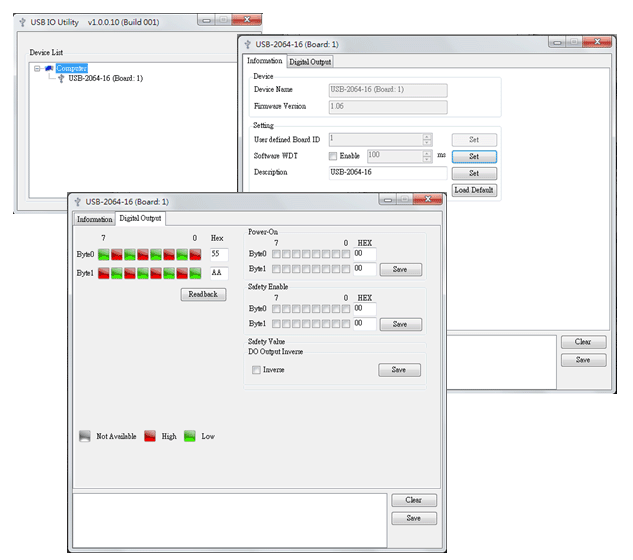

Through ICP DAS USB I/O utility, users can configure and test USB-2064-16 quickly and easily without programming. ICP DAS also provides a friendly API library for users to develop their own USB applications. The application fields can be building automation, factory automation, machine automation, data acquisition and control, environment control and monitoring, and laboratory equipment & research, etc.
