New Product Release: USB-2045-32 (32-channel Digital Output Module)
- The USB-2045-32 provided by ICP DAS is a new USB module with 32 digital output channels. The USB-2045-32 is similar to USB-2045 which can be used for industrial control and test applications, such as factory automation or control of embedded machine,etc. By using USB-2045-32, the users can control their equipment with ease.
The USB-2045-32 provides 32 digital sink output channels (more than USB-2045(16 channels)). It also features standard 4 kV ESD protection and 3000 VDC intra-module isolation. With the true Plug & Play capability, it needs not opening up your computer chassis to install the boards; just plug in the module, then the data can be retrieved via USB-2045-32.

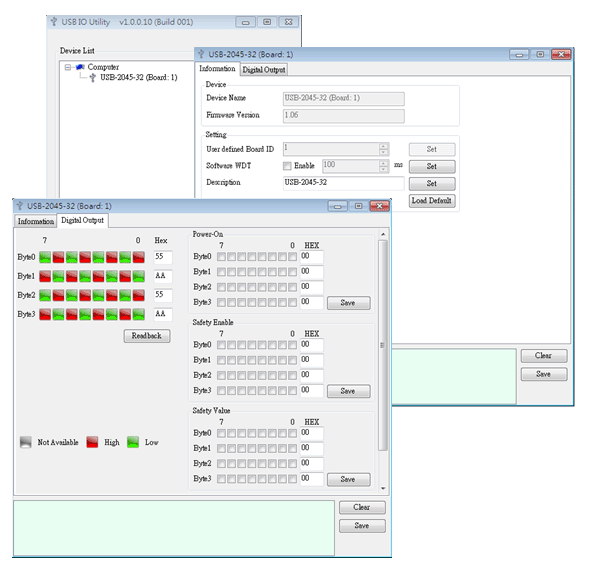

The USB I/O utility can help users to configure and test USB-2045-32 quickly and easily without programming. In addition, we also provide friendly API library, demos and various application development tools (VB/C++/C#.NET/VB.NET) for users to develop their own USB applications . Therefore, the USB-2045-32 is perfect for adding control capability to any USB capable computer. -
Features:
- 32-channel sink-type digital output
- Short Circuit, Overload and Overvoltage Protection
- Configurable Power-on Value Settings
- Safety functionality when communication failed
- Wide operating temperature range: -25°C to +75°C
- 3000 VDC Intra-Module isolation
- RoHS compliant
- USB 1.1/2.0 Full-Speed
- No external power supply (USB Bus Powered)
- Plug-and-Play without driver
- Lockable USB cable
- Support firmware update via USB
- Utility tool for operating module configuration and I/O testing easily and quickly
- Built-in dual watchdog (hardware/software)
- Provide API library (VC/VB/BCB/.NET)
- Module supported for Win2000/XP and Win 7,8,10 (32/64 bit)
-
Utility Features:
- Automatically scan all ICP DAS USB I/O modules
- Easily and quickly configure and test USB I/O modules
- Completely and precisely log IO data for analysis
- For more information, please visit the following website: http://www.icpdas.com/root/product/solutions/remote_io/usb_io/usb-2045-32.html
-
USB-2045-32 (NEW) 32-channel Sink-type Digital Output Module
