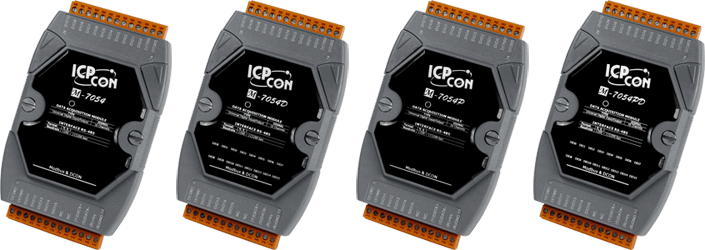

New Product: M-7054(D)/M-7054P(D)
16-channel Isolated Universal Digital Input/Output Module - Introduction:
The M-7054(P) provides 16 channels for universal Digital Input/Output, which can be selected via wire connections. The Digital Input channels are source type and can be used as 16-bit counters, while the Digital Output channels are sink type with short circuit protection and options for configuring power-on and safe Digital Output values. The M-7054(P) also provides ±4 kV ESD,±8 kV ESD for M-7054P, ±4 kV EFT and ±3 kV surge protection and 3750 VDC intra-module isolation to enhance noise protection capabilities in industrial environments. -
Features:
- M-7054(D)
○ provide Digital Output 100 mA/Channel
○ 4 kV ESD Protection - M-7054P(D)
○ provide Digital Output 500 mA/Channel
○ 8 kV ESD Protection - Dual Watchdog
- 4 kV EFT Protection
- 3 kV Surge Protection
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Wide Operating Temperature Range: - 25 ~ 75°C
- M-7054(D)
-
Applications:
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
- For more details, please visit:
http://www.icpdas.com/root/product/solutions/remote_io/rs-485/i-7000_m-7000/m-7054.html
