New Product: WFM-R14
Wi-Fi I/O Module, 2-channel Form-A Relay Output and 12-channel Form-C Relay Output with Metal Case -

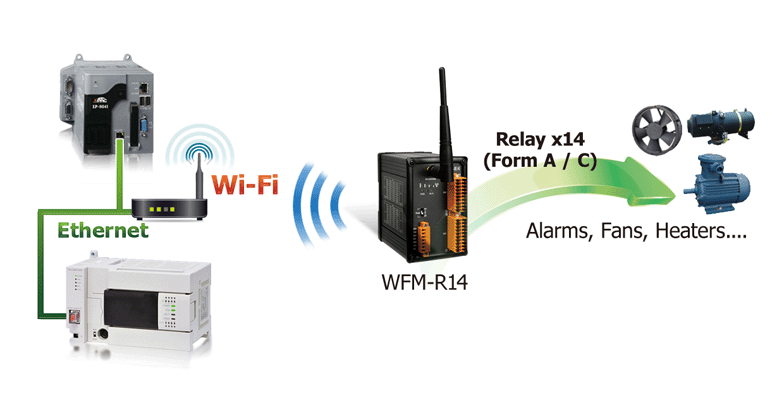

The WFM-R14 is a 2-channel Form-A Relay Output and 12-channel Form-C Relay output module with Metal Case which provides stronger protection. In addition, the WFM-R14 features WLAN connection that complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WFM-R14 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WFM-R14 also supports Modbus TCP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
-
Features:
- Compatible with IEEE 802.11b/g standards
- Supports infrastructure and ad hoc modes for wireless networks
- Supports Relay type digital outputs(Form A/Form C)
- Supports WEP, WPA and WPA2 wireless encryption
- Supports Modbus TCP protocols
- Supports DHCP network configuration
- Supports Pair Connection mode
- Wide Operating Temperature Range
- Built-in Watchdog
- 4 kV ESD Protection
- ICP DAS Wi-Fi Digital I/O Products TableModel
I/O Type Digital Input & OutputDigital Input & Relay OutputDigital OutputDigital InputRelay OutputDI Channel 86-16-Type Dry, WetDry, Wet-Dry, Wet-Sink/Source Sink, SourceSink, Source-Sink, Source-DO Channel 86-16-Type Open Collector-Open Collector--Sink/Source Sink-Sink--Relay Output Channel -6--14Relay -Power Relay--Power RelayType -Form A--2 Form A
14 Form C - For more information about the product, please refer to the following website: http://m2m.icpdas.com/WFM-R14.html
Related Wireless products: http://m2m.icpdas.com/product.html - Ordering Information
WFM-R14 CR Wi-Fi I/O Module with 2-channel Form-A Relay Output and 12-channel Form-C Relay Output (Metal Case) (RoHS)
