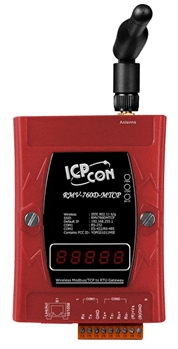

New Product: RMV-760D-MTCP (MB TCP/RTU Data-Exchange With Wi-Fi Interface Gateway)
-
-
RMV-760D-TCP is a Modbus TCP/RTU gateway. It exchanges Modbus commands from Modbus TCP/RTU master to Modbus RTU/TCP slave. Modbus TCP command can be transmitted not only through Ethernet port but also Wi-Fi interface. It supports VxComm and Pair-Connection functions. Users can choose Ethernet mode or Wi-Fi mode to do the pair connection, which provides TCP data tunneling between two serial devices.
-
General Features:
- Supports pair-connection applications
- Supports Virtual COM applications
- Application Modes: Virtual COM, MB TCP Server/Client, MB RTU Master/Slave
- Supports static IP/DHCP (Ad Hoc mode doesn’t support DHCP)
- Ethernet Protocol: TCP, UDP, IP, ICMP, ARP,RARP
- Support IEEE 802.11 b/g for Wi-Fi mode and Ad Hoc mode
- Support WEP-64,WEP-128, WPA-TKIP and WPA2-AES encryption for Wi-Fi mode
- Support WEP-64,WEP-128 encryption for Ad Hoc mode
- Auto control channel in AP mode
- Provides 1~13 RF channels
- Easy firmware update via Ethernet
- Removable terminal block connector
- RoHS compliant with Halogen-free
- ICP DAS provides the RMV-760D-MTCP configuration utility for Windows 2K/XP/Vista and Win 7.
○ Ethernet Settings
○ Wi-Fi Settings
○ Serial Port Settings
○ Operation Mode Settings
-
Statement of connection mode

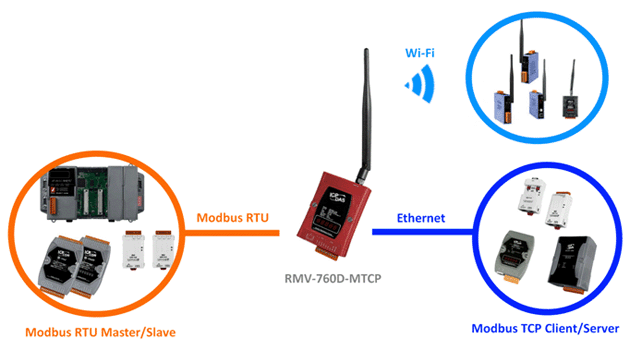

█ Communication Mode:
█ Modbus TCP and Modbus RTU data exchange.
Exchange data between Modbus TCP and Modbus RTU.
-
-

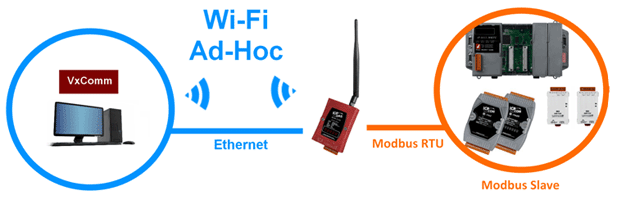

█ VxComm Mode:
In this mode, users must install VxComm Driver in the PC to use serial communication.
-

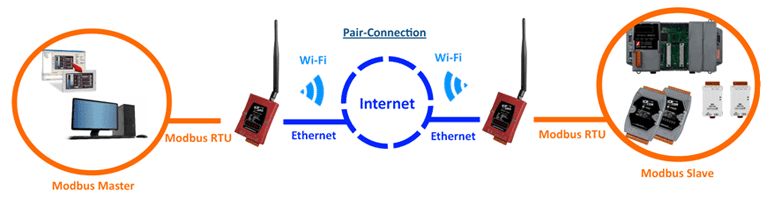

█ Pair-Connection Mode:
This mode requires two modules cooperate with each other, one is Pair-Connection Server; the other is Pair-Connection Client.
-
-
█ Transmission Type:

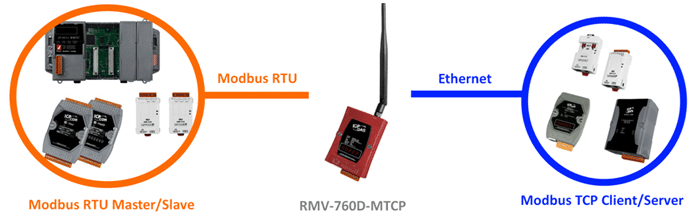

█ Ethernet:
This mode uses RJ-45 Ethernet cable to connect to the Internet and transmit data to others devices.
-
-

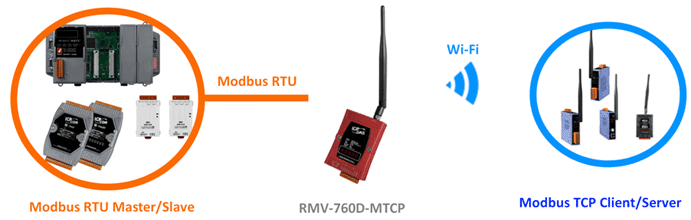

█ AP:
This mode uses Wi-Fi AP to connect to the Internet and transmit data.
-
-

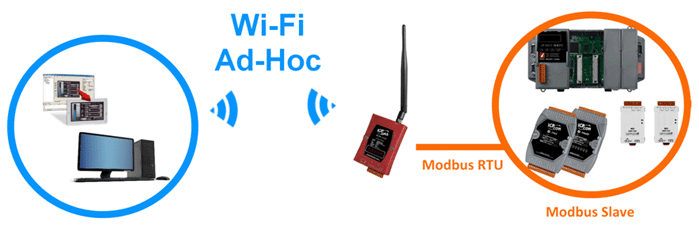

█ Ad Hoc:
In this mode, if the PC has Wi-Fi Wireless LAN Card, the data can be transmitted between PC and RMV-760D-MTCP without Wi-Fi AP and the transmission
distances can be up to 100 meters.
-
-
Ordering Information
RMV-760D-MTCP |
MB TCP/RTU Data-Exchange With Wi-Fi Interface Gateway (RoHS) |
