New Product: HRT-227CS (HART to Single Mode Fiber Converter)
-

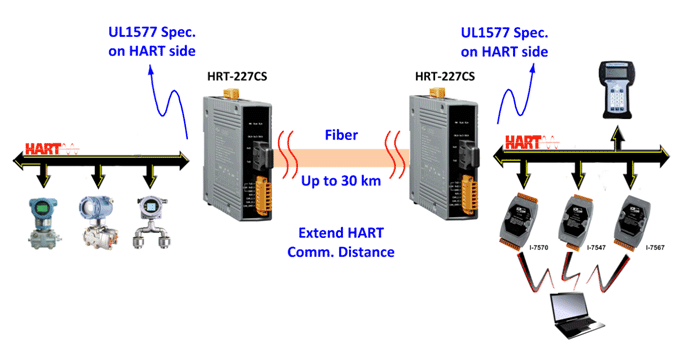

The HRT-227CS is a HART to Fiber converter paired used to extend HART communication distance via single mode fiber optic transmission medium and the fiber maximum transmission distance can be up to 30 km. In order to solve the problem between HART and fiber transmission medium, HRT-227CS is specially designed for converting the HART signal to fiber optic cables. The built-in dip switch can be used to adjust the HART 250 Ω loop resistor. By using HRT-227CS, the data collection and processing of HART network can be easier and quicker. In addition, free HC_Tool utility is also provided for easy module configuration.
-
Besides, the HRT-227CS provides the “Group ID” function which serves as basic message router. Users can decide the HART message flows among several HART networks.

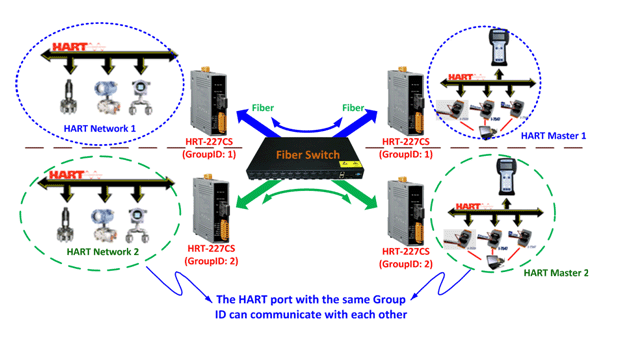

[ Example ](1) The above HART network 1 uses two HRT-227CS with Group ID=1.
(2) The below HART network 2 uses two HRT-227CS with Group ID=2.
(3) These two HART networks connected together via HRT-227CS with fiber switch.
The HART network 1 and network 2 can communicate simultaneously without any interfere. -
Features:
- Support HART Short/Long frame
- Support HART Burst mode
- Working in point-to-point or multi-drop HART mode
- Connecting up to 15 HART devices
- Allow two HART masters
- Provide HC_Tool for module configuration
- Support firmware update via ComPort
- Fiber Type: SC ; Single mode ; 100 Base-FX
- Fiber maximum transmission distance up to 30 km
- Adjustable 250Ω loop resistor by dip switch
- Provide Fiber broken line detection
- Provide PWR/Fiber/HART LED
- Built-in Watchdog
- The HART port can communicate with each other with the same Group ID
- HART Converter Products :Module NameI-7567
(USB to HART)I-7570
(Serial to HART)I-7547
(Ethernet to HART)Picture Master Comm. Interface USBRS-232
RS-422
RS-485EthernetHART Channel 114Signal Isolation 2500 Vrms2500 Vrms500 VrmsDC/DC Isolation 3000 VDC3000 VDC3000 VDCMaster Comm. Protocol HARTHARTHARTDriver Win2K/XP
Win7/8 (32/64bit)NoneNone
(Support VxComm)Power Supply USB10 to 30 VDC10 to 30 VDC250Ω Resistor By JumperBy JumperBy JumperFree Tool HC_ToolHC_ToolHC_Tool - HRT-227CS Datasheet:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/datasheet/English/hart/HRT-227CS.pdf
For more information, please visit the following website:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/hart/converter/hrt-227cs.html -
HRT-227CS CR (NEW) HART to Single Mode Fiber Converter (RoHS)
