New Product Release: PCIe-8620
PCI Express, 200 kS/s High-speed, 16-bit 8-ch Simultaneously Sampled Analog Input Board with 4-ch Isolated DI/O - Introduction:
The PCIe-8620 is a bus-type, isolated high-speed Analog Input board with isolated DI/O. The simultaneously sampled AD offers a mix of up to 8 single-ended 16-bit Analog Input channels with a 2 k Sample hardware FIFO. All channels feature a programmable input range of ±10 V or ±5 V with a sampling rate up to 200 kS/s per channel. The PCIe-8620 provides 4 isolated Digital Input channels and 4 isolated Digital Output channels. The isolation range of the board has been increased to 2500 VDC, making it one of the most cost-effective solutions if isolated AD with DI/O boards is a main concern.
PCIe-8620 also includes a second-order anti-alias analog filter where the -3 dB frequency for the ±5 V input range is usually15 kHz, and is usually 23 kHz for the ±10 V input range.

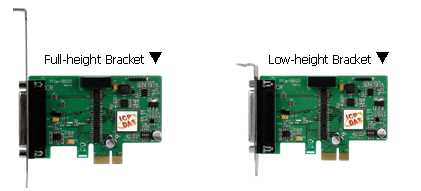

The PCIe-8620 is a low-profile PCI Express board that is suitable for computers with limited space, and is also suitable for standard-size computers since the board is shipped with both full-height and low-profile brackets. -
Feature & Special:
-
- Supports PCI Express x 1, Full-profile or Low-profile
-
- Card ID function: Users can set Card ID to recognize sequence of card when using two or more I/O cards of the same model in one computer.
-
- 4-channel Isolated Digital Input
- 4-channel Isolated Digital Output
- 2500 VDC isolation voltage
-
- 8 Single-ended Analog Input Channels
- Synchronous Sample and Hold
- Analog Input Range: ±10 V, ±5 V
- 16-bit, 200 kS/s Sampling Rate for each channel
- Hardware FIFO for Analog Input with a total of 2048 Samples
- Built-in MagicScan Controller
-
- Support .NET program
- Provide Microsoft Visual C#.NET 2005 sample programs
- Provide Microsoft Visual Basic.NET 2005 sample programs
- Provide Turbo C++, Borland C++, Microsoft C++ sample programs
- Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
-
- Support Microsoft Windows 8 32-/64-bit version OS
- Support Windows 98/NT/2000 and XP/2003/Vista/7 32-/64-bit version OS
- For more information, please visit the PCIe-8620 web site.
