New Product Release:

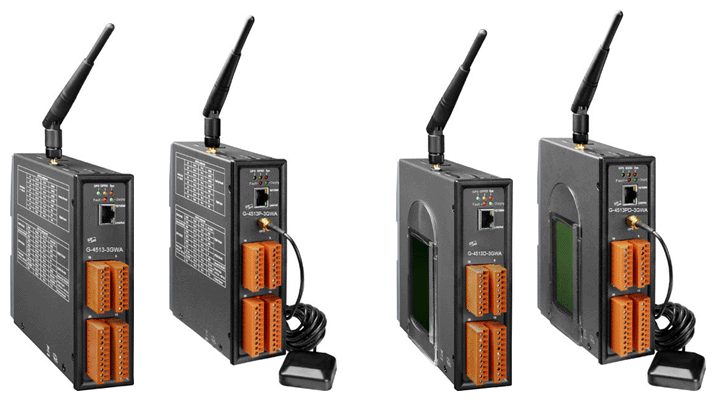

G-4513-3GWA: 3G WCDMA Power Saving PAC with Solar charger
G-4513P-3GWA: 3G WCDMA Power Saving PAC with Solar charger and GPS Function
G-4513D-3GWA: 3G WCDMA Power Saving PAC with Solar charger and LCD display
G-4513PD-3GWA: 3G WCDMA Power Saving PAC with Solar charger, GPS Function and LCD display -

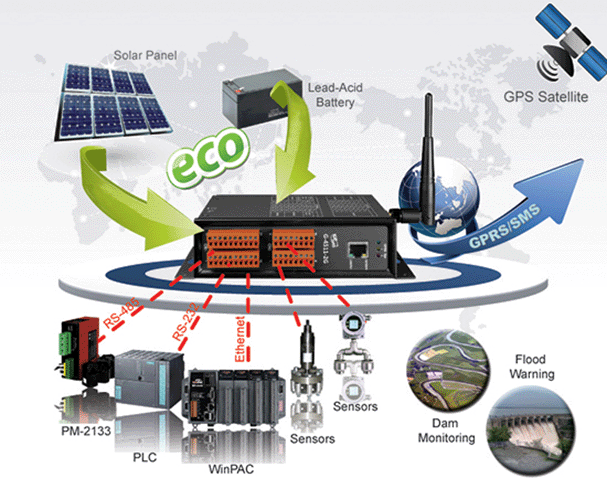

The G-4513-3GWA series is a M2M (Machine to Machine) Power Saving PAC with a cellular transceiver and a solar charger. It can be used in hydrologic monitoring or mudslide monitoring system. With optional GPS model, the G-4513-3GWA can function as a GPS tracking system for vehicle management or maritime system. The features of G-4513-3GWA series includes: Solar charger, 3G module, Ethernet interface, optional GPS module, 3 digital inputs, 3 digital outputs, 8 analog inputs, and 1 relay output.
-
Applications:
-
Features:
- Embedded MiniOS7, anti-virus
- Support GSM 850 / 900 / 1800 / 1900 MHz
- Support WCDMA 850 / 900 / 1900 / 2100 MHz
- Solar charger for Lead acid battery
- 10/100 Base-TX compatible Ethernet controller
- COM port: COM1 (5-wire RS232), COM2 (RS-485)
- I/O: 3 DI, 3 DO, 8 AI, 1 relay DO
- Support SD card.
- Built-in RTC, NVRAM, EEPROM
- GPS: 32 channels with All-In-View tracking (optional)
- Support TCP, UDP client connection over GPRS
- High reliability in harsh environments
- DIN-Rail mountable
- Datasheet: http://m2m.icpdas.com/datasheet/G-4513-3GWA_Datasheet.pdf
For more information, please visit the following website:http://m2m.icpdas.com/g-4513-3gwa.html
G-4513-3GWA CR 3G WCDMA Power Saving PAC with Solar charger (RoHS) G-4513P-3GWA CR 3G WCDMA Power Saving PAC with Solar charger and GPS Function (RoHS) G-4513D-3GWA CR 3G WCDMA Power Saving PAC with Solar charger and LCD display (RoHS) G-4513PD-3GWA CR 3G WCDMA Power Saving PAC with Solar charger, GPS Function and LCD display (RoHS)
