新產品: ZT-CHK, USB sniffer
- SmartRF Protocol Packet Sniffer

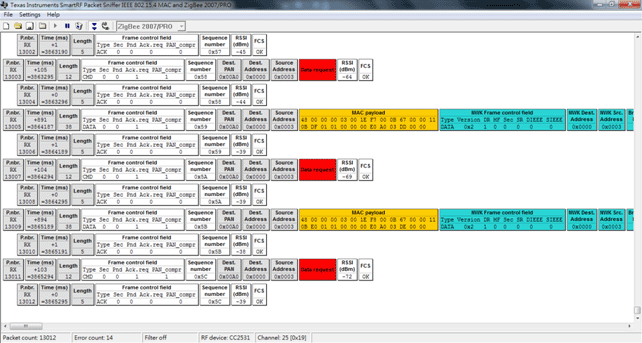

- 簡介:ZT-CHK是一款搭配TI SmartRF Protocol Packet Sniffer (SPPS)軟體,即可即時擷取和分析空氣中符合IEEE 802.15.4標準資料封包的sniffer。ZT-CHK可以透過USB介面在電腦進行安裝,而在操作SPPS軟體時,使用者可在電腦上查看或儲存無線的資料封包,例如像是ZigBee 2007 (ZigBee Pro)規範的資料封包。除此之外,在實際應用上,此方式可有效地分析IEEE 802.15.4的資料與降低無線通訊的測試時間。
SmartRF Protocol Packet Sniffer可以在此網址下載 (http://www.ti.com/tool/packet-sniffer)。當使用者安裝SmartRF Protocol Packet Sniffer的同時,ZT-CHK的驅動程式也會一併安裝。
更多產品資訊可參閱以下文件及資訊:
http://www.icpdas.com/root/product/solutions/industrial_wireless_communication/wireless_solutions/wireless_selection.html#e -
Features:
- Can capture over-the-air data packets of IEEE 802.15.4 standard
- No External Antenna required
- Wireless Receiving Range up to 60 meters (Line of Sight)
- Fully Compliant with the USB 1.1/2.0 (High Speed)
- No External Power Supply required
- Operating Temperatures, -25 °C ~ +75 °C
-

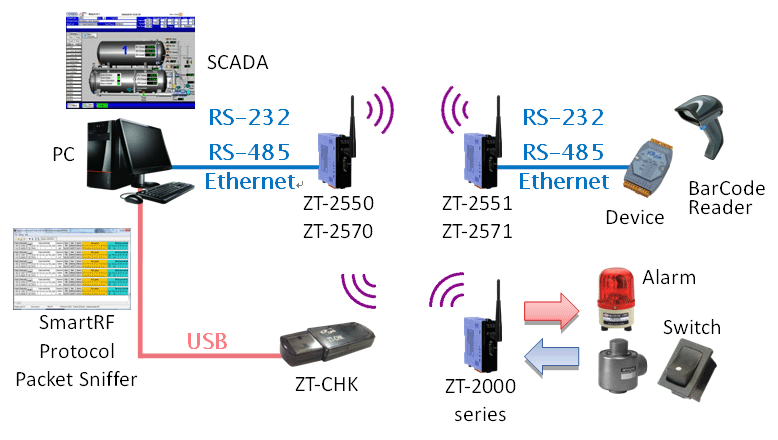

Applications:
Relative Products:ZigBee Converters ZT-USBC USB to ZigBee Converter (Host, ZigBee Coordinator) ZT-2550 RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) ZT-2551 RS-485/RS-232 to ZigBee Converter (Slave, ZigBee Router) ZT-2510 ZigBee Repeater (Slave, ZigBee Router) ZT-2570 Ethernet/RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) ZT-2571 Ethernet/RS-485/RS-232 to ZigBee Converter (Slave, ZigBee Router) ZigBee Digital I/O ZT-2042 ZigBee 4-ch PhotoMOS Relay Output and 4-ch Open Collector Output Module ZT-2043 ZigBee 14-ch Isolated Digital Output Module ZT-2052 ZigBee 8-ch Isolated Digital Input Module with 16-bit Counters ZT-2053 ZigBee 14-ch Isolated Digital Input Module ZT-2060 ZigBee 6-ch Isolated Digital Input and 4-ch Relay Output Module ZigBee Analog I/O ZT-2015 ZigBee 6-ch RTD Input Module with 3-wire RTD Lead Resistance Elimination ZT-2017 ZigBee 8-channel Analog Input Module with High Voltage Protection ZT-2017C ZigBee 8-ch Current Input Module with High Common Voltage Protection ZT-2018 ZigBee 8-ch Analog Input Module with High Voltage Protection ZT-2024 ZigBee 4-ch Voltage/Current Output Module ZT-2026 ZigBee 4-ch Voltage Input, 2-ch Voltage Output and 2-ch Digital Output Module
