- New Product: WF-2026 Wi-Fi I/O module with 5-ch AI, 2-ch AO, 2-ch DI and 3-ch DO
-
The WF-2026 is a multifunction module with Wi-Fi interface that includes 5 analog input channels, 2 analog output channels, 2 digital input channels and 3 digital output channels. It provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 to +20 mA) and output range on all analog output (12-bit at +/-5 V, +/-10 V, 0 to +20 mA or +4 to +20 mA). Each analog input and output channel can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Analog Input and output can be jumper selectable as either voltage or current.

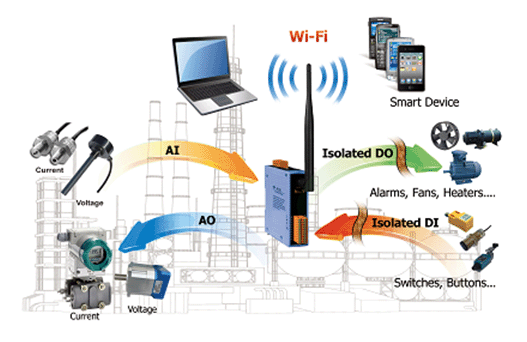

With the popularity of 802.11 network infrastructure, the WF-2026 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2026 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere. - Features:
- Multifunction (5 AI, 2 AO, 2 DI and 3 DO)
- Individual Channel Configuration
- Jumper Selectable Voltage or Current Input/Output
- Configurable Power-on and Safe Value Settings
- Compatible with IEEE 802.11b/g standards
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus/TCP and UDP protocols
- Support DHCP network configuration
- Overload and Short Circuit Protection for Digital Output
- 240 Vrms Overvoltage Protection for Voltage Input
- ±4 kV Contact ESD Protection
- Built-in Watchdog

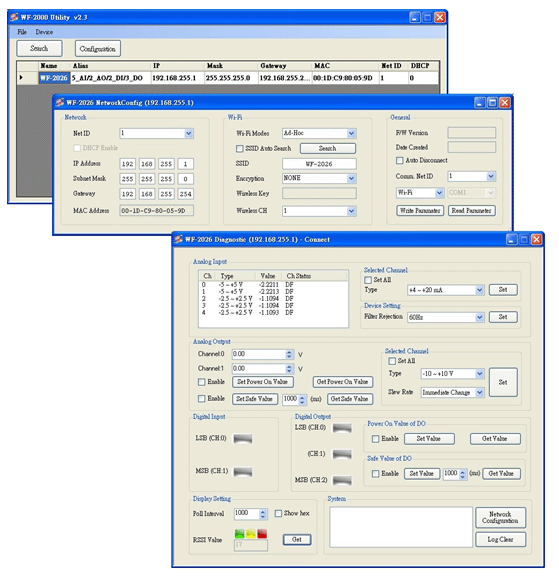

- Utility Feature:
- Provide automatic search functionality
- Provide Analog / Digital Input and Output monitor and configuration interfaces
- Provide wireless encryption configuration
- ICP DAS Wi-Fi Digital I/O Products Table
Module WF-2017
~ NEW ~WF-2019
~ NEW ~WF-2026
~ NEW ~I/O Type Analog Input Analog Input Multi Function DI Channel - - 2 Type - - Dry Sink/Source - - Source DO Channel - - 3 Type - - Open Collector Sink/Source - - Sink AI Channel 8/16 10 5 Wiring Differential/ Single-Ended Differential Differential Voltage & Current Input +/-10 V, +/-5 V,
+/-1 V, +/-500 mV,
+/-150 mV, +4 ~ +20 mA,
0 to +20 mA, -20 mA to +20 mA±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V ±20 mA, ±150 mV, ±500 mV,
±1 V, ±5 V, ±10 V
±20 mA , +0 to +20 mA, +4 to +20 mASensor Input - Thermocouple : J, K, T, E, R, S, B, N, C - AO Channel - - 2 Voltage & Current Output - - +0 to +5 VDC,
+0 to +10 VDC,
±5 VDC, ±10 VDC,
+0 to +20 mA,
+4 to+20 mA -
For more information about the product, please refer to the following website: http://m2m.icpdas.com/WF-2026.html
Related Wireless products: http://m2m.icpdas.com/product.html - Ordering Information
WF-2026 CR 5-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input and 3-channel Digital Output Wi-Fi I/O Module (RoHS) -
