New Product: WF-2019 Wi-Fi I/O Module, 10-channel Universal Analog Input
- The WF-2019 is a 10-channel universal analog input module with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. In addition, the WF-2019 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2019 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2019 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
- Features:
- 10 differential universal analog input channels
- Supports thermocouple devices with J, K, T, E, R, S, B, N, C types
- Compatible with IEEE 802.11b/g standards
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus/TCP and UDP protocols
- Support DHCP network configuration
- Wide operating temperature range
- Built-in watchdog
- Utility Feature:
- Provide automatic search functionality

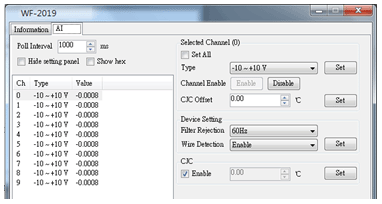

- Provide AI monitor and configuration screen
- Provide wireless encryption configuration
-
Wi-Fi I/O Products Table
Model Name WF-2055
~NEW~WF-2060
~NEW~WF-2019
~NEW~WF-2017
~Available soon~WF-2026
~Available soon~I/O Type Digital Input & OutputDigital Input & Relay OutputAnalog InputAnalog InputMulti FunctionDI Channel 86--2Type Dry, WetDry, Wet--DrySink/Source Sink, SourceSink, Source--SourceDO Channel 86--3Type Open CollectorPower Relay--Open CollectorSink/Source Sink---SinkAI Channel --108/165Wiring --DifferentialDifferential/ Single-EndedDifferentialVoltage & Current Input --±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V ±20 mA, +4 ~ +20 mA+/-10 V, +/-5 V, +/-1 V, +/-500 mV, +/-150 mV, +4 ~ +20 mA , 0 ~ +20 mA, -20 mA ~ +20 mA±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V ±20 mA, +0 ~ +20 mA, +4 ~ +20 mASensor Input --Thermocouple : J, K, T, E, R, S, B, N, C--AO Channel ----2Voltage & Current Output ----+0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC, +0 ~ +20 mA, +4 ~ +20 mA - For more information about the product, please refer to the following website:
http://m2m.icpdas.com/WF-2019.html
Related Wireless products: http://m2m.icpdas.com/product.html -
Ordering Information
WF-2019/S CR 10-channel Universal Analog Input Wi-Fi I/O Module with DB-1820 Daughter Board (RoHS)
