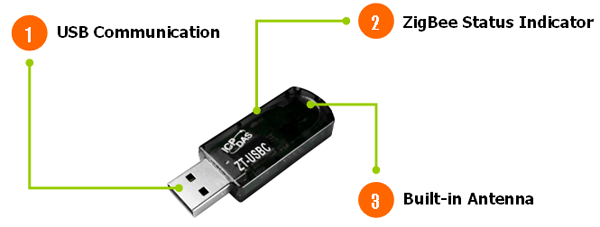

- New Product: ZT-USBC, USB to ZigBee Converter Module
- Introduction:
- The ZT-USB series modules are portable wireless ZigBee converters based on the IEEE802.15.4 standard and compliant with ZigBee Pro/ZigBee 2007. They can convert the data between ZigBee network and USB interface. The typical transmission distance of the ZT-USB series are 60 meters (LOS, line of sight). And there are 16 radio frequency channels between 2.405 GHz and 2.480 GHz defined in ISM bands. The ZT-USB series can offer peer to peer communication and route ZigBee packets automatically to extend the transmission range and improve the quality of wireless signal.
The ZT-USBC is designed for ZigBee Coordinator which initializes and manages the ICP DAS ZigBee products. We offer a simple utility that can reduce the complexity of ZigBee network manipulation in the industrial, scientific and automatic applications. For more information, please refer to the relevant website and documents for these devices, which can be found at following link:
http://www.icpdas.com/root/product/solutions/industrial_wireless_communication/wireless_solutions/wireless_selection.html#e
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/document
http://www.icpdas.com/root/product/solutions/industrial_wireless_communication/wireless_solutions/zt-usb.html - Features:
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with IEEE802.15.4/ZigBee Specifications (ZigBee Pro/ZigBee 2007)
- No External Antenna Required
- Wireless Transmission Range up to 60 meters (Line of Sight)
- GUI Configuration Software (Windows Version)
- Fully Compliant with the USB 1.1/2.0 (High Speed)
- USB Powered
- USB Baud Rate up to 115200 bps
- Operating Temperatures, -25 XC ~ +75 XC
- Driver Supports Windows XP/Vista/7/8
- Utility Features:
- Easily and Quickly Configuration
- Parameter Save and Restore Interface
- Applications:
- Relative Products:
ZigBee Converters ZT-USBC USB to ZigBee Converter (Host, ZigBee Coordinator) ZT-2550 RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) ZT-2551 RS-485/RS-232 to ZigBee Converter (Slave, ZigBee Router) ZT-2510 ZigBee Repeater (Slave, ZigBee Router) ZT-2570 Ethernet/RS-485/RS-232 to ZigBee Converter (Host, ZigBee Coordinator) ZT-2571 Ethernet/RS-485/RS-232 to ZigBee Converter (Slave, ZigBee Router) ZigBee Digital I/O ZT-2042 ZigBee 4-ch PhotoMOS Relay Output and 4-ch Open Collector Output Module ZT-2043 ZigBee 14-ch Isolated Digital Output Module ZT-2052 ZigBee 8-ch Isolated Digital Input Module with 16-bit Counters ZT-2053 ZigBee 14-ch Isolated Digital Input Module ZT-2060 ZigBee 6-ch Isolated Digital Input and 4-ch Relay Output Module ZigBee Analog I/O ZT-2015 ZigBee 6-ch RTD Input Module with 3-wire RTD Lead Resistance Elimination ZT-2017 ZigBee 8-channel Analog Input Module with High Voltage Protection ZT-2017C ZigBee 8-ch Current Input Module with High Common Voltage Protection ZT-2018 ZigBee 8-ch Analog Input Module with High Voltage Protection ZT-2024 ZigBee 4-ch Voltage/Current Output Module ZT-2026 ZigBee 4-ch Voltage Input, 2-ch Voltage Output and 2-ch Digital Output Module - For more information, please visit the following website:
