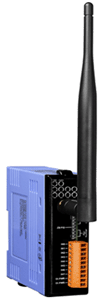

- New Product: ZT-2052-IOP, ZigBee Pair-connection Module with 8-ch Isolated Digital Input Module
- Introduction:
- The ZT-2052-IOP module acts as a ZigBee coordinator that provides 8-channel digital input pair-connection function with module of ZT-2042 (4-ch PhotoMOS Relay Output and 4-ch Open Collector). An embedded I/O channel binding function means that there is no need to use an external controller.
The status of each ZT-2052-IOP channel triggers the corresponding remote digital output channels on the ZT-2042 module. The ZT-2052-IOP continually transmits updates on the status of the digital input channels to the remote ZT-2042 to ensure that the digital output channels are synchronized.
The ZT-2052-IOP also provides external DIP and Rotary switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult. - Features:
- Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
- Fully Compliant with ZigBee Pro (ZigBee 2007)
- Wireless Transmission Range up to 700 m
- 8 Channels Pair-connection of the Digital Input to the Digital Output
- External DIP Switch Configuration
- Surge and ESD Protection
- DIN-Rail Mountable
- Applications:
- Ordering Information:
ZT-2052-IOP CR ZigBee Pair-connection to the 8-ch Isolated Digital Input Module (Host, ZigBee Coordinator) (RoHS) ZT-2042 CR ZigBee 4-ch PhotoMOS Relay Output and 4-ch Open Collector Output Module (Slave, ZigBee Router) (RoHS) Important Note: ZigBee Pair-connection module is a ZigBee host to coordinate the ZigBee I/O module. Please remember to order at least one ZT-2042 module as the ZigBee I/O pairing - Accessories:
MDR-20-24 24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting ZT-2510 CR ZigBee Repeater (RoHS) - For more information, please visit the following website:
