- New Product: Intelligent 3G Modbus SMS/Voice Alarm Controller - SMS-531

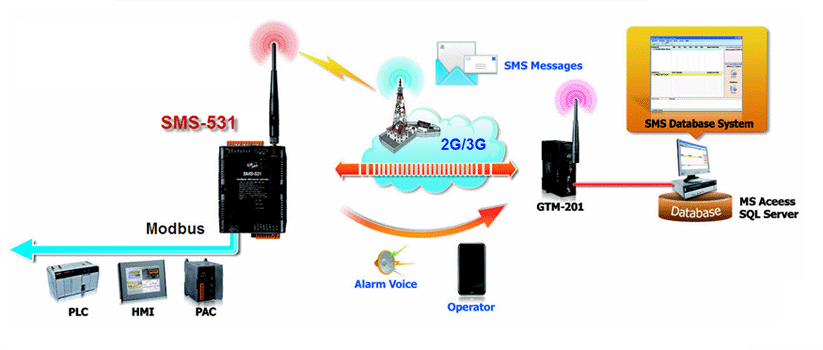

- SMS-531 is an intelligent 3G Modbus/SMS Gateway for industry M2M applications. It is convenient for users to apply to M2M applications with the host like PC, PLC, HMI and PAC via Modbus RTU command. SMS-531 supports UNICODE format for users to send SMS messages to the specific mobile phones by Modbus RTU protocol with various language. That turns the current system into M2M applications. Moreover, the SMS-531 also offers the voice alarm function by recorded voice files to inform listed operators while the emergency events occurring. For managing more SMS-5xx series remotely, ICP DAS provides SMS DBS(Database system) software for users to apply in the system.
- Features:
-
- Support GSM 850/900/1800/1900 MHz Quad-band frequency
- Support WCDMA 850/900/1900/2100 MHz Quad-band frequency
- Support Modbus RTU slave protocol
- Support max. 256 short messages and voice alarms
- Support max. 70 Unicode Characters
- Easy to setup and configure
- Escalation and reminder function
- Up to 256 mobile phones can be alerted for each alarm point
- These phone numbers can be divided into groups
- Configurable SMS messages
- The content of sending SMS message can be changed by Modbus protocol
- Built-in Watch-dog Function
- Industrial Design with Surge Protection
- Support SMS DB of ICP DAS software
- 1 RS-485, 2 RS-232 port
- Support micro SD/SDHC card. (max. 32 Gbytes)
- Support DC +10 VDC ~ +30 VDC Power Input
- DIN Rail design
- Applications:

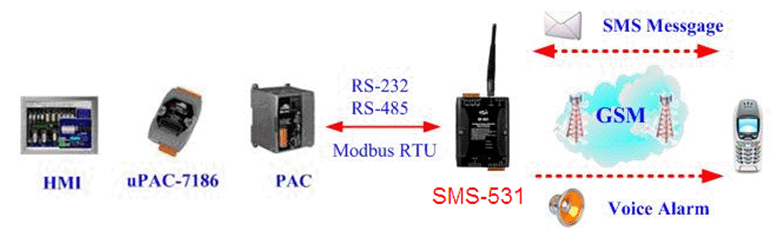

- Application 1 : Signal Alarm and SMS communication

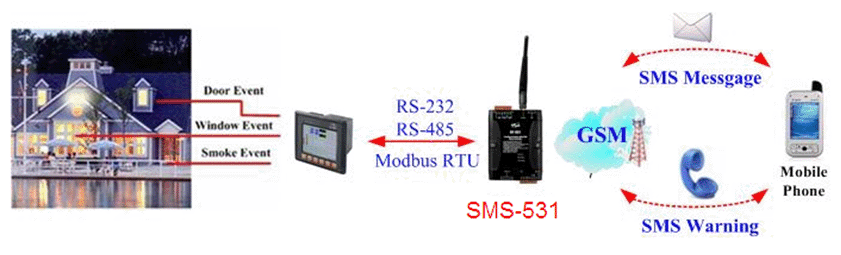

- Application 2 : Home Security

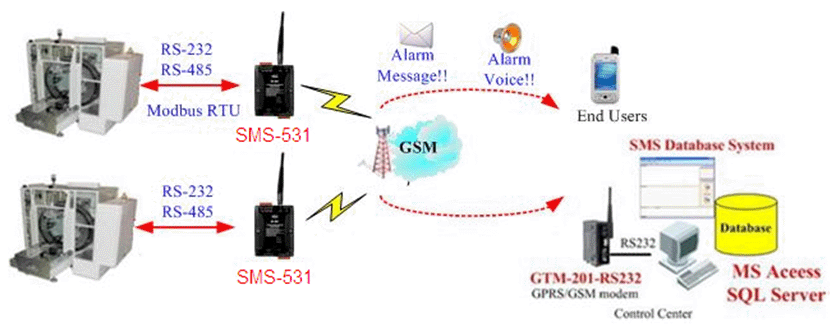

- Application 3 : Remote maintenance
- SMS-5xx series Comparison Table
-
SMS-531
~NEW~SMS-530
~Available soon~SMS-534
~Available soon~SMS-534P
~Available soon~2G/3G System GSM 850/900/1800/1900
WCDMA 850/900/1900/2100Alarm Mode Modbus RTUDIDI/AIDI/AIPhone Numbers 256101010Micro SD FAT 16/32-FAT 16/32FAT 16/32Voice Yes-YesYesDTMF --YesYesGPS ---Yes1200 mAh
Battery-36 hr3 hr3 hrRS-232/RS-485 1/11/01/11/0Data Log --YesYesDI (Count) -10(6)6(6)6(6)DO -222AI --11 - Please refer to the following link for more product information:
SMS-531 : http://m2m.icpdas.com/sms-531.html - The related products information:
M2M Website : http://m2m.icpdas.com/product.html
