New Product: IR-712A (Universal IR Learning Remote Module)

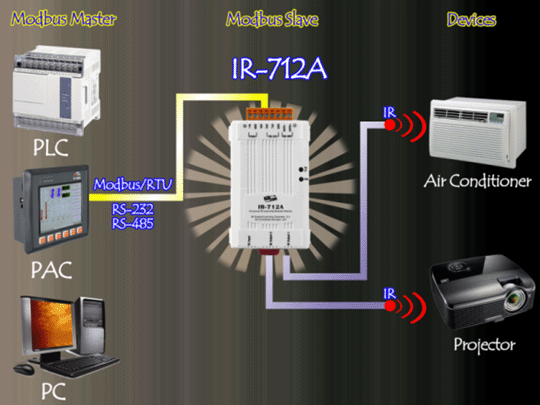

The IR-712A is a new universal IR learning remote module from ICP DAS, which is developed specially for the less remote controlled appliances in some intelligent HA/BA applications to provide more flexible plans in the deployment and cost. The IR-712A inherits all the properties of the IR-712 and has an IR commands storing capacity augmented to 224. The IR-712A can learn IR remote commands of diverse electronic devices. The learning results can be stored in the module or saved to a file. The IR-712A supplies 2 IR output channels for individual and simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus/RTU protocol provide an easy way to the remote control by the Modbus master devices which can be PC, PLC and ICPDAS’s PACs, etc. As a replacement of IR remotes, the IR-712A is well-suited for smart home and building automation.


Features:
  • 2 IR output channels for controlling multiple devices.
  • 1 IR learning input.
  • Supports IR carrier frequencies: 32.768、36、37.037、38、40 and 56 kHz.
  • Can learn and store 224 IR commands.
  • Supports RS-232 and RS-485 serial interface.
  • Supports Modbus/RTU protocol.
  • Assignable Modbus Network IDs: 1 ~ 247.
  • Baud rate settings: 9600, 19200, 38400, 57600 and 115200 bps.
  • Configurable NONE / ODD / EVEN parity and 1 or 2 stop bits.
  • Provides transmitting / learning / power indication LEDs.
  • Built-in Watchdog.
  • RoHS Compliance.

Utility
The IR-712A Utility is an easy tool for users to develop their IR-712A applications. It can help users to configure and test the IR-712A efficiently. The functions of the IR-712A Utility are as follows:
  • IR quantity configuration.
  • IR commands learning and testing.
  • Save IR learning commands to files.
  • Get/Set IR learning commands from/to IR-712A.
  • Reference to Modbus commands.
  • Set/Reset basic settings of IR-712A.


ICP DAS Universal IR Learning Remote Series
Product Type
IR Output Channel
6
2
Capacity of IR Cmds
176
36
224
Serial Comm. Interface
RS-232, RS-485
Protocol
Modbus/RTU (Slave)
Size (W x H x D)
33 mm x 107 mm x 78 mm
52 mm x 93 mm x 27 mm

For more detail information, please refer to the following links:
Product page of the IR-712A: http://m2m.icpdas.com/IR-712.html
Datasheet of the IR-712A: http://m2m.icpdas.com/datasheet/IR-712A-Datasheet.pdf
