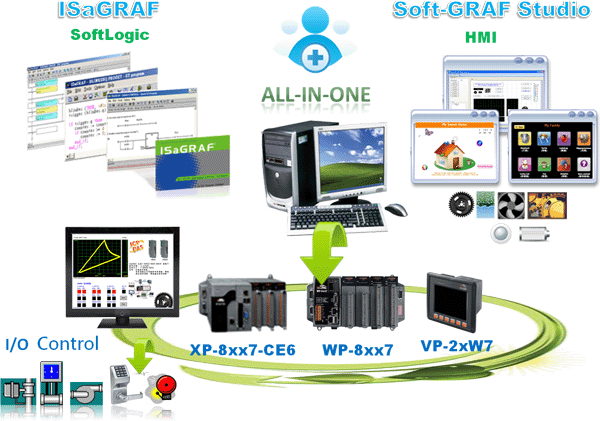

Soft-GRAF Studio is an HMI (Human Machine Interface) software developed by ICP DAS which allows user to create his colorful HMI application running with the control logic in the same XP-8047-CE6/8347-CE6/8747-CE6, WP-8137/8437/8837, WP-8147/8447/8847 and VP-25W7/23W7 ISaGRAF PAC. User can edit the HMI screen by Soft-GRAF Studio using the graphical drag and drop operation. And use ISaGRAF to design the control logic by PLC Languages (Ladder, ST, FBD......). Please refer to the ISaGRAF PAC FAQ-146 for more information.

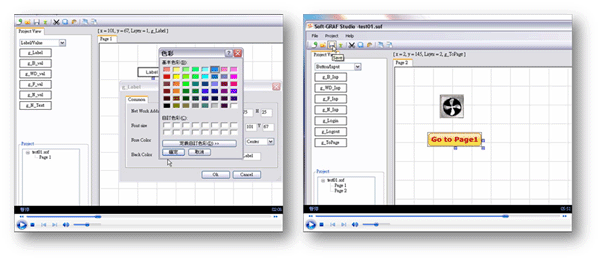

The Soft-GRAF Studio website provides a tutorial video for online or downloaded learning. Through the seven and a half minutes, you will learn the software download, installation, HMI pages design and program uploading to the controller. Such a total tutoring will let you know that using the Soft-GRAF Studio is so easy!!

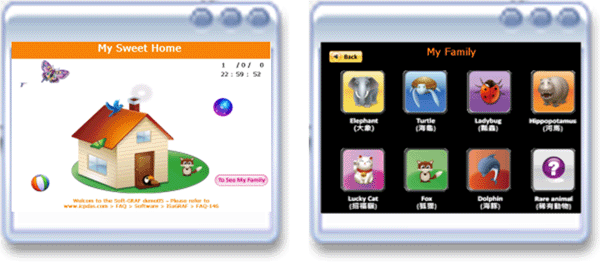

My Sweet Home is a simple demo of an interesting animated application. The intuitive operating HMI looked like the screen of mobile phones or tablet PC and you can test it intuitively even without connecting to the I/O modules. The My Sweet Home video is this demo operation video. By watching this video, customers can feel how powerful and how colorful of the Soft-GRAF Studio will be even it is a free software.
