| Industrial image processing solutions: Image processing and analysis library - EzCheck Vision Library v1.0 |
| |
EzCheck Vision Library is an Image processing and analysis library provided by ICP DAS. It helps users to create their own machine vision system easily and fast. It is suitable for x86/x64 computer with Windows XP and Windows 7(32/64bit).
EzCheck Vision Library supports several image file types and provides many basic image processing functions, and some useful advanced functions. |
| |
 |

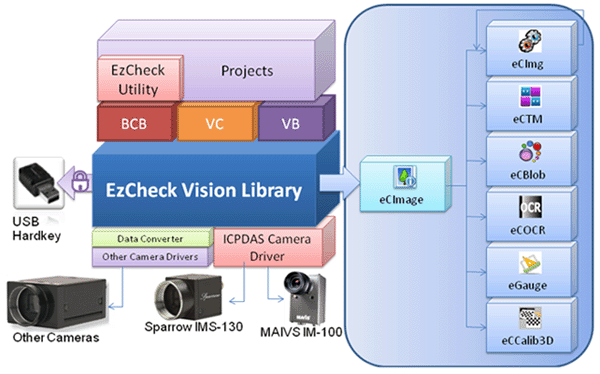

EzCheck Vision Library architecture. |
| |
| Main Feature: |
Provide seven main components to help users develop their own machine vision system. |
|
- EzCheck Image, which helps to access the image files and image information.
- Image Processing Group, which include some common image processing tools.
- Template Matching, which can detect the similar areas on the image.
- Blob Analysis, which can analyze the blobs on the image.
- Optical Character Recognition, which can recognize the character on the image.
- 3D Calibration, which can unwarp the skewed image.
- Gauge/Measure, which can measure the information of several shapes.
|
| |
| Provide utility software for users to test and verify V EzCheck Utility |
 |

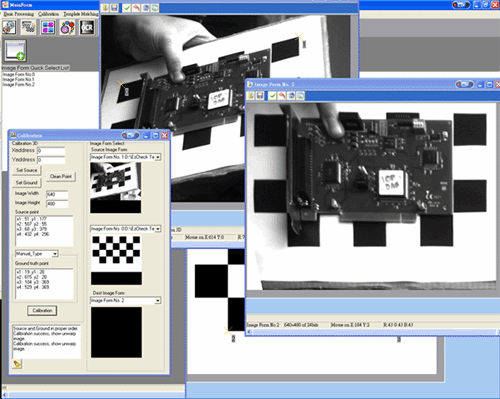

EzCheck Utility interface. |
| |
| USB Hardware Key protection and grading package |
EzCheck Vision Library Grading Packages List |
Packages |
 |
eCImage |
|
 |
eCTM |
|
 |
eCBlob |
|
 |
eCGauge |
|
 |
eCOCR |
|
 |
eCCalib3D |
|
EzCheck-A |
|
|
|
|
X |
X |
EzCheck-B |
|
|
|
X |
|
X |
EzCheck-C |
|
X |
|
|
X |
|
EzCheck-D |
|
|
X |
|
X |
|
EzCheck-ALL |
|
|
|
|
|
|
|
|
| |
Provide sample programs for multiple development platforms
By referencing the open source sample programs, users can learn how to develop applications by EzCheck Vision Library in short time. Sample programs of Borland C++ Builder 6.0 and Visual C++ 6.0 are now available.
Support the image capture of cameras
Users can capture the images of cameras through EzCheck Vision Library, and the integration of software and hardware will be very efficient. Currently supports ICP DAS's IMS-130 and IM-100 IEEE 1394 cameras, etc.
http://www.icpdas.com/products/Vision/mavis/im-30_im-100.htm
http://www.icpdas.com/products/Vision/Sparrow/Sparrow.htm |
| |
| Operating System Support |
Operating System |
32-bit (x86) |
64-bit (x64) |
Microsoft Windows 7 |
|
|
Microsoft Windows Vista |
|
- |
Microsoft Windows XP |
|
- |
|
|
| |
| Applications |
 |
 |

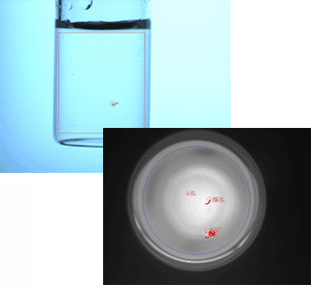

Impurity detection for ampoule injection |

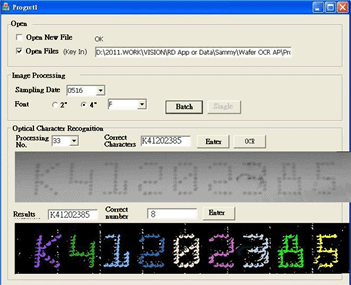

OCR for Solar wafer |
 |
 |
Thickness detection for diamond blades |
Computed tomography image analysis for Knee bones |
|
| |
Technical Services
Vision project evaluation, Vision project design and development |
| |
| You can find more detail of EzCheck Vision Library in http://www.icpdas.com/root/product/solutions/software/development_tools/ezcheck/ezcheck_introduction.html |
| |
| Other Machine Automation and Machine Vision products are presented in http://www.icpdas.com/root/product/solutions/machine_automation/machine_automation_products.html |
| |
| Ordering Information |
| |
| License |
| RUN-TIME License |
| EZCHECK-A |
EzCheck Vision Library (eCImage/eCTM/eCBlob/eCGauge), one HardKey included. |
| EZCHECK-B |
EzCheck Vision Library (eCImage/eCTM/eCBlob/eCOCR), one HardKey included. |
| EZCHECK-C |
EzCheck Vision Library (eCImage/eCBlob/eCGauge/eCCalib3D), one HardKey included. |
| EZCHECK-D |
EzCheck Vision Library (eCImage/eCTM/eCGauge/eCCalib3D), one HardKey included. |
| EZCHECK-All |
EzCheck Vision Library (eCImage/eCTM/eCBlob/eCGauge/eCOCR/eCCalib3D), one HardKey included. |
|
|
| |
| HardKey |
| HardKey |
|
EZCHECK HardKey is an encapsulated chip that must be physically connected to the USB Port of the local computer on which EzCheck Vision Library is executed. |
|
|
| |
|
| |
