Sparrow IMS-130
IEEE 1394b Color/Monochrome digital industrial camera |
 |
 |
 |
 |
|
| |
|
|
|
|
|
|
|
|
|
|
 |
 |
|
| |
|
|
|
 |
|
|
|
|
|

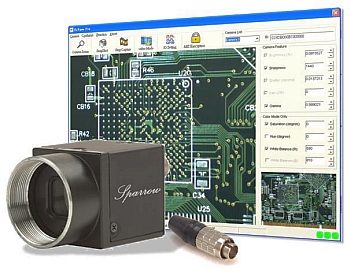

Sparrow; a new IEEE 1394 camera product line of ICP DAS--designed for
industrial machine vision applications. Sparrow IMS series are designed
within high sensitivity industrial CCD sensor and be able to acquire
color image or monochrome image. The
IMS-130 offers 1288 x 964 resolutions and acquisition speed up to 31
frames per second.
Sparrow series also offers industrial digital I/O and screw locked
1394b connector interface designed. Compact housing with industrial
level design can be adopted into all kind of inspection system such as
inspection by robot arms. Sparrow IMS series image applications can be
implement on industry environments such as semiconductor, electric
component, high-speed assembly and manufacture quality control. |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
- Progressive-scan for on-the-fly Applications
- VGA to Up 1.3 Mega-pixel High Resolution
- Small and Exquisite Compact Industrial Housing Design
- Built-in 32 MB Memory Buffer
- 64 KB Data Flash and AES Project Encryption
- Robust External Trigger I/O Interface Supported
- Free SDK API for VC, VB, BCB and C#.Net 2003
- Supports Windows 2000/XP Driver
|
 |
|
| |
 AOI (Area of Interest) Image Acquisition |
| The AOI (Area of Interest) function allows users to
select an area of interest, for the camera’s CCD array to
specifically read, display, and transmit. The AOI function will enhance
the acquisition speed and saving the image processing time. |
| |
|
- Color mode AOI image acquisition
|
- Monochrome mode AOI image acquisition
|
|
|
| |
| AES Project Encryption |
 |
| Sparrow IMS series camera offers an AES project
encryption function. The system designer can use this function to
generated unique security key to protected the copy right of their
system. |
|
| |
|
| |
64 KB Data Flash Memory
|
|
| Sparrow
series has offers 64K bytes Data Flash memory for customer to save the
camera configuration settings or the system application program running
check information. |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
| Model No. |
IMS-130 |
| Sensor Size |
1/3” Sony CCD |
| Pixel Size |
3.75 um x 3.75 um |
| Resolution |
1288 x 964 |
Max. Frame Rate
at 1394b S800 |
Mono mode up to 31 fps
Color mode up to 16 fps |
| A/D Converter |
12-bit Analog to Digital converter |
| Image Data Format |
Mono 8-bit, Mono 16-bit, RGB 24-bit |
| Data Flash |
64 KB |
| Interfaces |
9-pin IEEE 1394b for camera control and video data transmission,
8-pin Hirose for four general purpose digital input and output supported |
| I/O |
Opto-isolated Trigger Input x 1, Opto-isolated Output x 1
Bi-directional TTL GPIO x 2 |
| Power Consumption |
2.5 W, max at 12 V |
| S/N Ratio |
59 dB |
| Dimensions |
29 x 29 x 30 mm (without Lens) |
| Mass |
58 g (without Lens) |
| Lens Mount |
C-Mount |
| 1394 Compliance |
IIDC 1394 based digital camera specification V1.31 |
| Operating Temperature |
0 ~ 45 °C |
| Storage Temperature |
-30 ~ 60 °C |
| Operating Humidity |
20 ~ 80 % RH (no condensation) |
| Storage Humidity |
20 ~ 95 % RH (no condensation) |
| Certificated |
CE, FCC |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
| IMS-130 |
1/3” CCD (1288 x 964) 1394b Color/Monochrome digital industrial camera |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
| Model No. |
Picture |
Description |
| IOI-4601-21 |
 |
IEEE 1394a Dual port interface card |
| CA-1394AB-45 |
 |

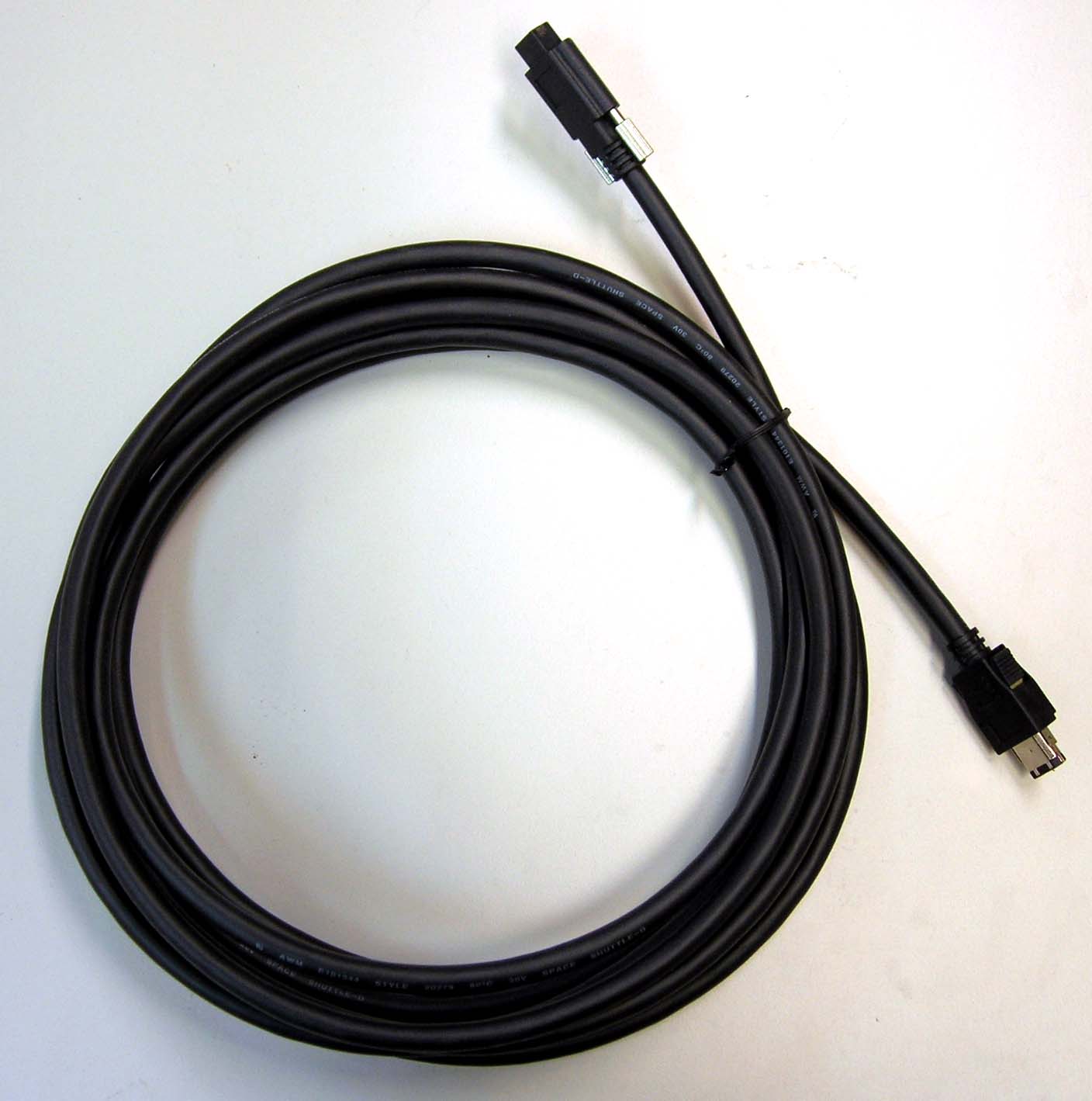

1394a to1394b high-flex bilingual 4.5 M cable |
| CA-1394B-45 |
 |

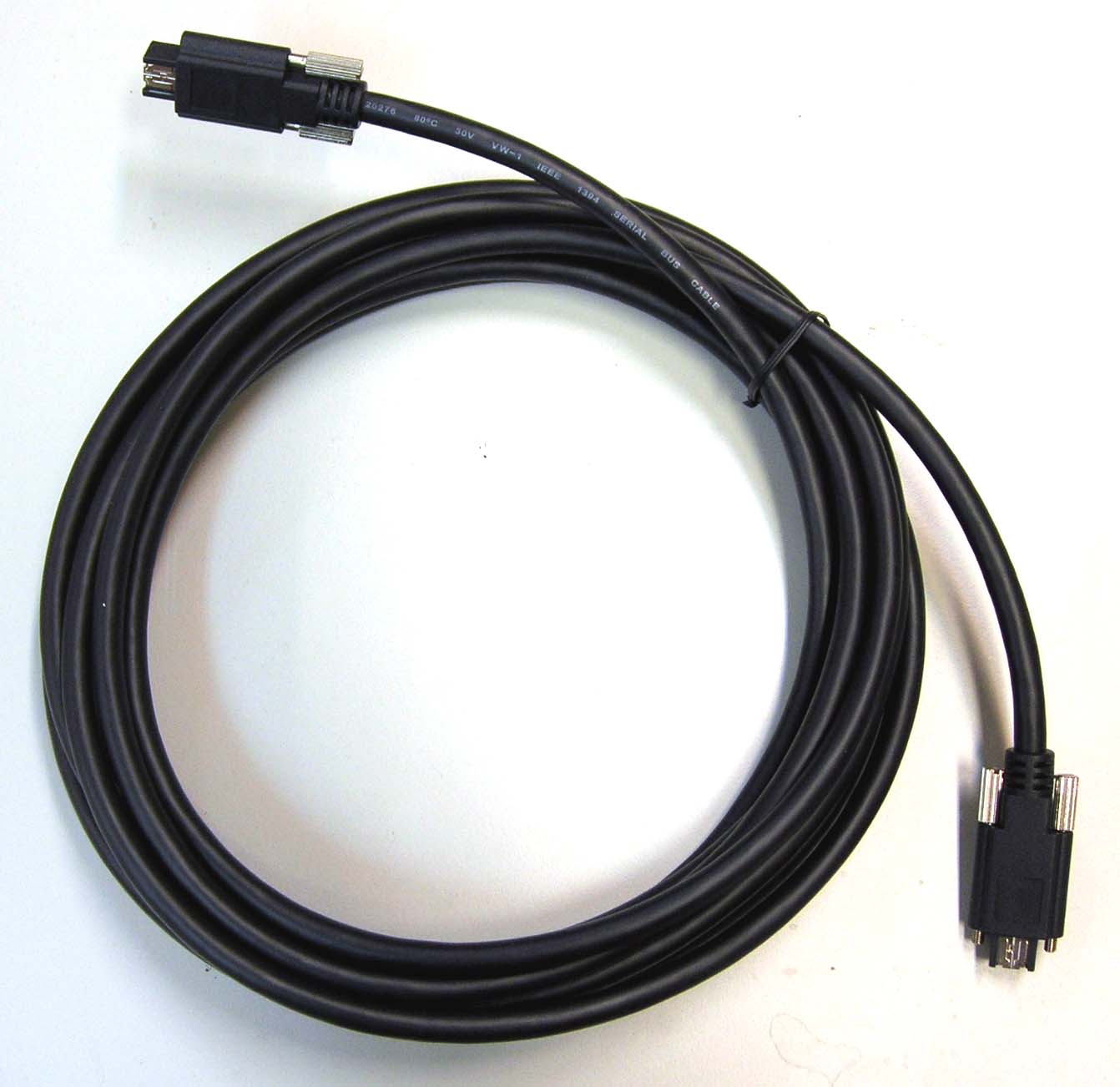

1394b high-flex 4.5 M cable |
|
|
|
|
|
|
|
|
|
|
