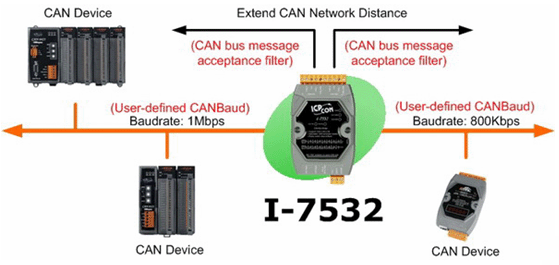

I-7532 is a CAN bridge module with the following functions:
(1) Extended the total CAN network distance.
(2) Raise CAN network device loading capacity.
(3) Integrate two different CAN baud rate networks and separate the errors between them.
In v1.01 firmware, the user-defined CAN baud rate and CAN bus message acceptance filter configuration are provided. In v1.02 firmware, support I-7532 firmware update via CAN bus. In the latest firmware v1.03, add the CAN-ID mapping function in I-7532 and users can assign the received CAN-ID messages forwarded by I-7532 under another identifier. Through CAN-ID mapping function, it realizes the integration of multi same CAN devices in the same CAN network. We also provide the I-7532 utility to configure the new function easily and quickly.

1. Up to 100 CAN nodes on each channel.
2. Transmission distance up to 1km on each CAN channel.
3. Rotary switch for CAN baud rate from 5Kbps to 1Mbps or programmable user-defined CAN baud rate.
4. Provide I-7532 Utility for CAN bus message acceptance filter and user-defined CAN baud rate etc. configuration easily and quickly.
5. Support both CAN 2.0 A and CAN 2.0B.
6. Support CAN bus message acceptance filter configuration.
7. Support firmware update via CAN1 of I-7532.
8. CAN messages can be forwarded under another identifier.
9. Selectable 120 [ terminator resistor by jumper.
10. Watchdog inside.
