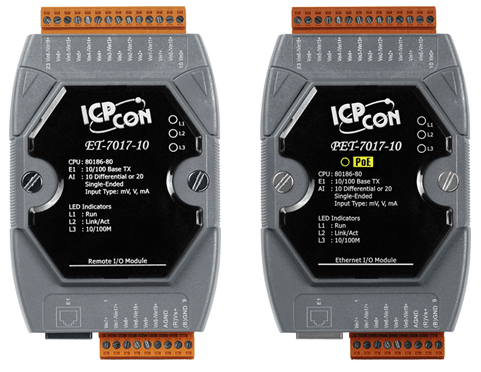

The ET-7017-10/PET-7017-10 is a web-based Ethernet I/O module that features a built-in web server which allows remote configuration, I/O monitoring and I/O control simply by using a regular web browser. Remote control is as easy as surfing the Internet. In addition, the web HMI function means that programming or HTML skills are no longer required so creating dynamic and attractive web pages for I/O monitoring and I/O control purposes will be easy for engineers in the future. The ET-7017-10/PET-7017-10 offers easy and safe access for users, and also supports the Modbus/TCP protocol that ensures perfect integration with SCADA software. Furthermore, the PET-7017-10 supports the PoE feature., meaning that not only is data transmitted through an Ethernet cable but also power making installation of the PET-7017-10 a piece of cake. Imagine no more unnecessary wires with only an Ethernet cable being required to take care of everything in the field.
The ET-7017-10/PET-7017-10 is a 16-bit, 10-channel differential or 20-channel single-ended analog inputs module that provides programmable input range on all analog channels (+/-150 mV, +/-500mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0~20 mA and 4~20 mA). Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. The analog inputs are also Jumper selectable for either voltage or current input. The sampling rate of ET-7017-10/PET-7017-10 is changeable, there are fast mode and normal mode. ET-7017-10/PET-7017-10 also has 4 kV ESD protection, as well as 3000 VDC intra-module isolation. |
