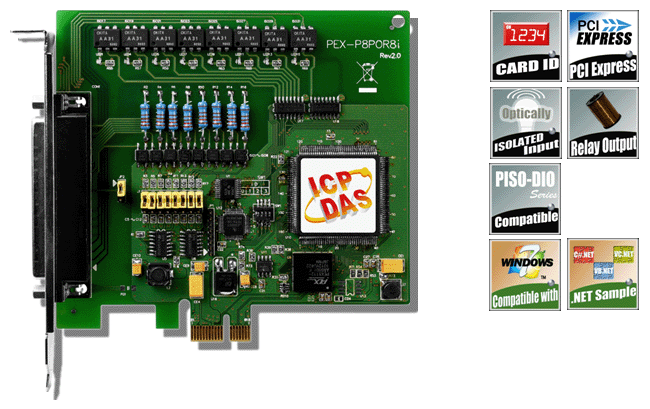

ICP DAS New Product Release: PEX-P8R8i
PCI Express, 8-channel Optical-Isolated Digital Input and 8-channel Relay Output Boards


Introduction:
The PEX-P8R8i card is the new generation product that ICP DAS provides to meet RoHS compliance in newest interface - PCI Express. The PEX-P8R8i contains 8 photo coupler digital inputs that provide 2000 Vrms isolation protection and allows the input signals to be completely floated so as to prevent ground loops noise. They are also equipped with 8 relay output channels to enable the control of the ON/OFF state of external devices, drive external relays or small power switches, or activate alarmsKetc.

The PEX-P8R8i also contains a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-P8R8i cards in one computer.

The PEX-P8R8i supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT and Windows XP/2003/Vista/2008/7 32/64-Bit. It also provides the DLL, Active X control, and various language sample programs of Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, Visual C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Feature & Special:
  • Support the PCI Express




  • Card ID function, users can set Card ID to recognize sequence of card when users use two or more same model I/O cards.




  • 8 photo coupler digital input channels
  • 8 relay output channels
  • 2000 Vrms isolation protection
  • DIO response time is about 250 gs (4 kHz max.)
  • Selectable DC signal input filter
  • AC Signal input with filter




  • Compatible with software of PISO-P16R16U/PEX-P16R16i




  • Support .NET program
  • Provide Microsoft Visual C#.NET 2005 sample programs
  • Provide Microsoft Visual Basic.NET 2005 sample programs
  • Provide Turbo C++, Borland C++, Microsoft C++ sample programs
  • Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs




  • Support 32/64-bit Windows 7
  • Support 32/64-bit Windows XP/2003/Vista/2008
  • Support Windows 98/NT/2000



For more information, please refer to... http://www.icpdas.com/products/DAQ/pc_based/piso_p16r16u.htm
