PCI-P16POR16/PEX-P16POR16i/PEX-P8POR8i
PCI-P16POR16: 16-channel isolated digital input, 16-channel PhotoMos relay output
PEX-P16POR16i/P8POR8i: PCI Express, 16/8-channel isolated digital input, 16/8-channel PhotoMos relay output |
|
| ~NEW~ |
 |
| |
|
| Model: PCI-P16POR16 |
Model: PEX-P16POR16i/
PEX-P8POR8i |
|
|
|
|
 |
|
|
|
|
| |
|
|
| |
|
|
| |
The PCI-P16POR16 is a PCI card supporting both the 5 V PCI bus, while the PEX-P8POR8i/PEX-P16POR16i is a PCI Express card. Each contain 8 or 16 optically isolated input channels and 8 or 16 PhotoMos relay output channels. Both the isolated DI channels and the PhotoMos relay channels use a short optical transmission path to transfer an electronic signal between elements of a circuit and keep them electrically isolated. The PCI-P16POR16 provides 5000 Vrms and PEX-P8POR8i/P16POR16i provide 2000 VDC for DI channel isolation protection, allowing the input signals to be completely floated so as to cut down ground loops, block voltage spikes, and isolate the host computer from damaging voltages. PhotoMos relays are used where it is necessary to control a circuit using a low-power signal (with complete electrical isolation between the control and controlled circuits), or where several circuits must be controlled by one signal. The PEX-P16POR16i is fully compatible with the PCI-P16POR16, and users can easily replace the PCI-P16POR16 with the PEX-P16POR16i without any need for software/driver modification when using PCI Express computers.
The PEX-P16POR16i/PEX-P8POR8i also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PEX-P16POR16i/PEX-P8POR8i cards in one computer. The PCI-P16POR16 and PEX-P16POR16i/PEX-P8POR8i can be used in various applications, such as controlling the ON/OFF state of external devices, driving external relays or small power switches, activating alarms, contact closure, sensing external voltages or switches, etc.
These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Selectable DC signal input filter
- AC signal input with filter
- LED power indicator
- Long life and high reliability PhotoMos relay
- Low leakage current when PhotoMos relay is off
- No contact bounce, no sparking
- No acoustical noise
- High speed DIO operation
- Supports Plug & Play to obtain I/O resources
- No more manually setting of I/O address and IRQ
[PEX-P8POR8i/PEX-P16POR16i]
- Supports PCI Express x1
- 8/16 PhotoMos Relay output channels
- 8/16 Optical isolated digital input channels
- Supports Card ID (SMD Switch)
- Supports DO status Readback (Register Level)
- 2000 VDC photo-isolation protection
[PCI-P16POR16]
- Supports the +5 V PCI Bus
- 16 PhotoMos Relay output channels
- 16 Optical isolated digital input channels
- 5000 Vrms photo-isolation protection
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7.
- VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included.
- LabVIEW toolkit for Windows.
- Driver for Linux.
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Model Name |
PCI-P16POR16 |
PEX-P16POR16i |
PEX-P8POR8i |
| Digital Input |
| Isolation Voltage |
5000 Vrms(Photo-couple) |
2000 VDC (Photo-couple) |
| Channels |
16 |
8 |
| Input Voltage |
Logic 1:AC/DC 5 ~ 24 V(AC 50 ~ 1 kHz)
Logic 0: AC/DC 0 ~ 1 V |
| Input Impedance |
- |
1.2 K£[, 0.5 W |
- |
| Response Speed |
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical) |
| Relay Output |
| Channels |
16 |
8 |
| Relay Type |
PhotoMos Relay(Form A) |
| Contact Rating |
Load Voltage: 300 V (AC peak or DC)
Load Current: 130 mA |
| Operate Time |
0.7 ms (typical) |
| Release Time |
0.05 ms (typical) |
| Insulation Resistance |
23 £[ |
| Special |
| LED Indicators |
Output status |
| General |
| Bus Type |
5 V PCI, 32-bit, 33 MHz |
PCI-Express x1 |
| Data Bus |
16-bit |
| Card ID |
No |
Yes (4-bit) |

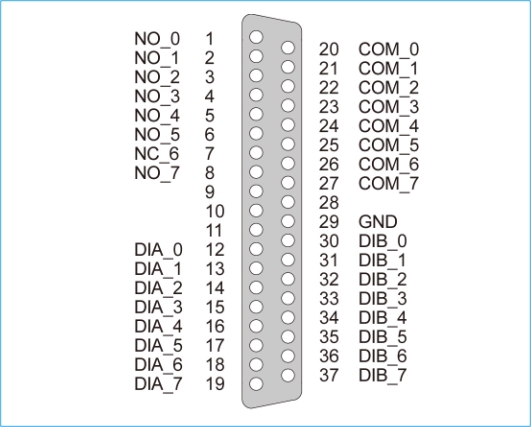

| I/O Connector |
Female DB37 x 1
40-pin box header x 1 |
Female DB37 x 1 |
| Dimensions (L x W x D) |
183 mm x 105 mm x 22 mm |
| Power Consumption |
800 mA @ +5 V |
| Operating Temperature |
0 ~ 60 ¢XC |
| Storage Temperature |
-20 ~ 70 ¢XC |
| Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| PCI-P16POR16 |
16-channel isolated digital input.16-channel PhotoMos Relay output.
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
| PCI-P16POR16 CR |
16-channel isolated digital input.16-channel PhotoMos Relay output (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
PEX-P8POR8i CR
(Available Soon) |
PCI Express x1, 8-channel isolated digital input.8-channel PhotoMos Relay output (RoHS)
Includes one CA-4002 D-Sub connector. |
PEX-P16POR16i CR
(Available Soon) |
PCI Express x1, 16-channel isolated digital input.16-channel PhotoMos Relay output (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
| CA-3710DM |
DB-37 Male-Male Cable, 1.0 M, 180¢X. (RoHS) |
| CA-3730DM |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
| CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| CA-4037W |
40-pin flat & D-sub 37-pin Female cable 24 cm. |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
