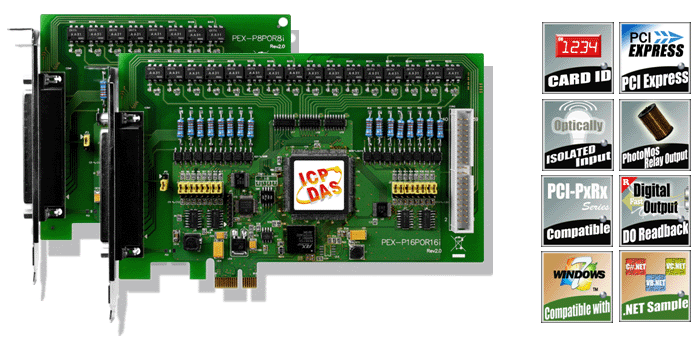

ICP DAS New Product Release: PEX-P8POR8i/P16POR16i
PCI Express, 8/16Vchannel Optical-Isolated Digital Input and 8/16-channel PhotoMos Relay Output Boards


Introduction:
The PEX-P8POR8i/P16POR16i card is the new generation product that ICP DAS provides to meet RoHS compliance in the newest interface - PCI Express. The new PEX-P8POR8i/P16POR16i card is designed as backward compatible with for the PCI-P8POR8/PCI-P16POR16.

The PEX-P8POR8i/P16POR16i in PCI Express contains 8/16 photo-coupler digital inputs that provide 2000 Vrms isolation protection and allows input signals to be completely floated so as to prevent ground loops noise. They are also equipped with 8/16 photomos relay output channels to enable the control of the ON/OFF state of external devices, drive external relays, small power switches, or activate alarmsKetc.

The PEX-P8POR8i/P16POR16i also contains a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-P8POR8i/P16POR16i cards in one computer. In addition, PEX-P8POR8i/P16POR16i also has DO status Readback function to get the relay status at any time.

The PEX-P8POR8i/P16POR16i software is compatible with the PCI-P8POR8/PCI-P16POR16 software. Therefore, the new PEX-P8POR8i/P16POR16i card is totally compatible with PCI-P8POR8/P16POR16 card and requires no software modification. The PEX-P8POR8i/P16POR16i supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT and Windows XP/2003/Vista/2008/7 32/64-Bit. It also provides the DLL, Active X control, and various language sample programs of Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, Visual C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Feature & Special:
  • Support the PCI Express




  • Card ID function, users can set Card ID to recognize sequence of card when users use two or more same model I/O cards.




  • 8/16 photo coupler digital input channels
  • 8/16 relay output channels
  • 2000 Vrms isolation protection
  • DIO response time is about 250 gs (4 kHz max.)
  • Selectable DC signal input filter
  • AC Signal input with filter




  • Supports DO status Readback, users can get the relay status from registers.
  • LED power indicator, users can get the relay status from LED.




  • Compatible with software of PCI-P8POR8/PCI-P16POR16




  • Support .NET program
  • Provide Microsoft Visual C#.NET 2005 sample programs
  • Provide Microsoft Visual Basic.NET 2005 sample programs
  • Provide Turbo C++, Borland C++, Microsoft C++ sample programs
  • Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs




  • Support32/64-bit Windows 7
  • Support 32/64-bit Windows XP/2003/Vista/2008
  • Support Windows 98/NT/2000



For more information, please refer to... http://www.icpdas.com/products/DAQ/pc_based/pci_p16por16.htm
