TPD-280U has been released!

We have now formally released TPD-280U as a new 2.8 touch screen HMI device. Compared with TPD-280 and TPD-283, TPD-280U expands its memory to 16 MB SDRAM and 8 MB Flash. Besides, TPD-280U supports real time clock (RTC) and USB 1.1 client (firmware updates only).

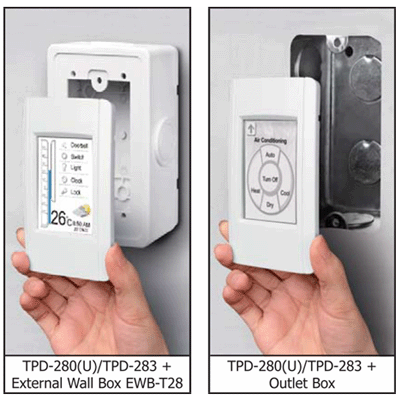

TPD-280U, a tiny touch screen HMI device designed for building and home automation, is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Meantime, it can be seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. TPD-280U offers the way to upgrade mechanical switches into intelligent control pads.

Specifications of TPD-280U

Models	TPD-280U
CPU Module
CPU	Low-power 32-bit RISC CPU
Memory Expansion	16 MB SDRAM/8 MB Flash
Real Time Clock (RTC)	Yes
Buzzer	Yes
Rotary Switch (0~9)	Yes
Communication Interface
Serial Port	RS-485 (including Self-Tuner)
USB 1.1 Client	Firmware updates only
MMI (Main Machine Interface)
LCD	2.8 TFT (Resolution 240 x 320 x 16), bright pixels <= 3
Backlight Life	20,000 hours
Brightness	160 cd/m2
Touch Panel	Yes
Reset Button	Yes
Electrical
Power Input	+10 ~ 30 VDC
Consumption	1.2 W (50 mA @ 24 VDC)
Mechanical
Dimensions (W x L x H)	76 mm (W) x 119 mm (L) x 31 mm (H)
Installation	Wall Mount
Environmental
Operating Temperature	-20 ~ +70 XC
Storage Temperature	-30 ~ +80 XC
Ambient Relative Humidity	10 ~ 90% RH, non-condensing

Specifications of TPD-280 and TPD-283

Models	TPD-280	TPD-283
CPU Module
CPU	Low-power 32-bit RISC CPU
Buzzer	Yes
Rotary Switch (0~9)	Yes
Communication Interface
Ethernet	-	RJ-45 x 1, 10/100 Base-TX
USB 1.1 Client	RS-485 (including Self-Tuner)	-
MMI (Main Machine Interface)
LCD	2.8 TFT (Resolution 240 x 320 x 16), bright pixels <= 3
Backlight Life	20,000 hours
Brightness	160 cd/m2
Touch Panel	Yes
Reset Button	Yes
Electrical
Power Input	+10 ~ 30 VDC	PoE (Power over Ethernet)
Consumption	1.2 W (50 mA @ 24 VDC)	IEEE 802.3af, Class 1
Mechanical
Dimensions (W x L x H)	76 mm (W) x 119 mm (L) x 31 mm (H)
Installation	Wall Mount
Environmental
Operating Temperature	-20 ~ +70 XC
Storage Temperature	-30 ~ +80 XC
Ambient Relative Humidity	10 ~ 90% RH, non-condensing

TouchPAD sites: http://www.icpdas.com/products/HMI/touchpad/tpd-280.htm
