簡介
IVS-255為泓格公司在工業多媒體網路相關應用的第一個產品，是一款使用400MHz內頻的Intel xScale pxa-255 CPU以及嵌入式Linux 作業系統的工業級別網路影音伺服器。IVS-255 可以同時支持4路的MPEG4影像壓縮、4路聲音壓縮以及1路即時(real-time)的聲音撥放，且所有的影音串流皆經過最佳化設計專門為在Ethernet 上做穩定而高效率的傳輸，加上它強固的硬體設計、低功耗以及無風扇等特質，使得 IVS-255 特別適合於工業現場的環境來使用。
|
|
| |
|
|
|
|
|
| |
|
|
| |

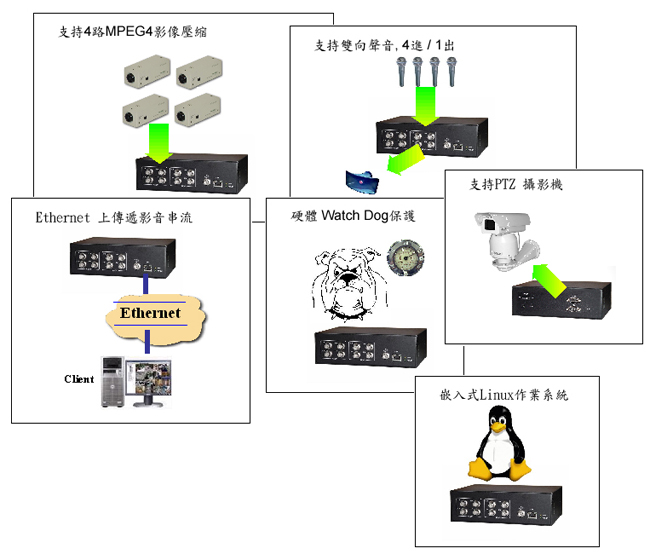

Features
- CPU : Intel xScale PXA-255 CPU @ 400 MHz
- 作業系統 : Embedded Linux 2.4.19
- 低功耗無風扇
- 硬體watch dog保護
- 支持4路MPEG4影像以及4路聲音即時壓縮
- 支持4路即時聲音撥放
- 提供ActiveX Control SDK 給系統整合者做為應用開發工具
- 提供可以與InduSoft Web Studio 6.1直接整合使用的軟體套件
|
|
| |
|
|
|
|
|
| |
|
|
| |
Specifications
| CPU |
IntelR xScaleR PXA-255 @ 400 MHz400 MHz |
Memory |
SDRAM : 32 MB, Flash : 16 M |
| Power |
Require power input : 12 V DC
PowerConsumption : 5W |
Ethernet |
Number of (Channels) : 1
Bit Rate : 10/100 Mbps |
| Video Encode |
Number of Channels : 4
Input video type : NTSC / PAL
Compression type : MPEG4 ISO/IEC 14496-2, SOP @LEVEL3
Performance : NTSC 320x240 @ 120fps, PAL 352x288@100fps |
| Audio Encode |
Number of Channels : 4
Sample Rate : 8 KHz, Mono
Audio compression type : ADPCM |
Audio play-out |
Number of (Channels) : 1
Audio stream format : MP3 like streaming
Sample Rate : 44.1 KHz, Mono |
| RS232 |
Number of Channels : 1
Connector : DB9 male |
| Operation temperature |
-15 °C ~(+) 65 °C |
| Storage temperature |
-40 °C ~(+) 85 °C |
| Certification |
EMI,CE / FCC / VCCI |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Ordering Information
| IVS-255 |
即時MPEG4 工業級別網路影音伺服器 |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Software Support
Being an industrial field product, the software supporting is a key concern for user, especially for those who implement IVS-255 as part of their system. IVS-255 has rich software resource and there will be more and more in the future. Among them, the SDK, System Developer Kit, is the most important and is the basis of all others. |
|
| |
|
|
| |
SDK |
|
| |
| |
 |
IVS-255 provides SDK (System Developer Kit) for system developers to build their own application quickly and easily. The SDK includes Client side ActiveX Controls (for windows 2000/XP), users manual and programming guides, and examples of VC++, and VB. |
|
|
|
| |
|
|
| |
InduSoft Web Studio integration Package |
|
| |
| |
 |
IVS-255 provides integration package for InduSoft Web Studio Software. The InduSoft Web Studio is a HMI/SCADA tool. With this package, control engineer could add multimedia remote monitoring function their HMI/SCADA system. |
|
|
|
| |
|
|
|
|
|
| |
|
|
