Introduction |
|
| |
NuWa is an All-In-One RISC Base Single Board Computer using Intel PXA255 CPU. The PXA255 is a low power and high integrated system on chip design on the Intel XScale micro architecture and implementation of the ARM compliant. |
|
| |
|
|
|
|
|
| |
|
|
| |

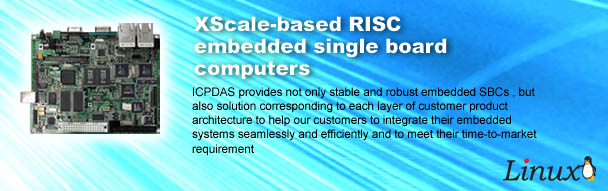

XScale-based Embedded SBC |
|
| |
NuWa series provides 4 kind of standard boards for your embedded solution , also OEM/ODM is welcome.
ICPDAS is very experienced in producing robust industrial-quality SBC. Wild range working temperature, humidity, static electricity, and electric circuit protection are highly considered and tested. |
 |
|
|
| |
|
|
|
|
|
| |
|
|
| |
ICPDAS I/O Technology |
|
| |
| Our embedded SBCs are all I/O - Ready. ICPDAS offers flexible I/O expansion modules and boards for your embedded system,and I/O expansion is available for analog I/O, digital I/O, serial I/O (RS-232/422/485), and motion control. We also offer off-the-shelf flat panel display, touch panel, and connector cables to ease your integration of end products. |
 |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Embedded RTOS Solutions |
|
| |
| Each of our embedded SBCs is embedded Linux built-in, and we also provide OS image OEM/ODM services for our customers to utilize their systems. |
 |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Application Development Support |
|
| |
| User friendly utilities would help you configuring and monitoring our system locally or remotely. And diversified software development packages and demo programs are provided to help you to develop, download and debug your applications and feature your applications in accessing ICPDAS expansion I/O modules. |
_20Support.gif) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
System Integration Support |
|
| |
| Our development kits would help you to evaluate our solutions and to develop your applications concurrently.And BSPs of our embedded SBCs are included in our development kits for you to customize your OS image.We offer our customers FREE technical support and0 training courses hosted by our expert FAE to help you to get started and to guarantee your success. |
 |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Mechanical Engineering Services |
|
| |
| ICPDAS provide both standard best-fit chassis and flexible mechanical designs to embed your hardware modules. |
 |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Hardware Specifications |
|
| |
|
|
| |
|
NuWa-470 |
Processor |
Intel XScale PXA255 |
Processor Clock Rate |
400 MHz |
Flash A (32 Bits Mode) |
32 MB |
Flash B (16 Bits Mode) |
8MB |
System Memory |
64 MB SDRAM |
Compact Flash Interface |
Type I/II x1 |
SD/MMC |
Pin Header |
Hardware Unique ID |
v |
RTC |
v |
Watch Dog Timer |
v |
Processor JTAG |
v |
LCD Interface |
v |
Touch Interface |
v |
Full Function RS-232 |
1 |
RS-485 |
1 |
IrDA Interface |
1 |
Blue Tooth Interface |
1 |
USB Client |
1 |
AC97' Audio |
v |
I8000 I/O Interface |
1 |
SRAM |
512 KB |
EEPROM |
128 K bit |
PCMCIA |
v |
CRT Interface |
v |
10/100 Ethernet |
2 |
USB Host Port |
4 |
CAN Bus |
1 |
Additional Serial Ports |
Full Function RS-232 x1
4 Wired RS-232 x2
2 Wired TTL Level RS-232 x1 |
Power In |
DC 5V, optional DC 12 V for LCD |
Dimension |
146 mm x 112 mm x 40 mm |
Operation Temp |
0¢Xc ~70¢Xc |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Ordering information |
|
| |
| |
NuWa-470 |
|
Windows CE.NET 4.2 |
NuWa-470W |
|
Linux |
NuWa-470L |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
