MD-11/12
MD-11/12:FRnet for I-8000





  MD-11/12




How to select MD series modules
    The MD-11 features a female 37-pin D-sub connector and works with I-8041 or I-87041. The MD-12 features a female 37-pin D-sub connector and works with I-8040 or I-87040. The I-8041, I-87041, I-8042, I-87042 are all digital series I-8000 PAC and WinCon-8000.






An MD series module is used to extend the I/O distance of PC and PAC
    Since a PC and PAC have many network adapters, they don't really require an MD series module to implement an FRnet network. Therefore, long-distance I/O extension is the best application for MD series modules.









  • Communication speed: 250K bps
  • Communication distance: 400m max
  • Digital input channels: 32
  • Digital output channels: 32

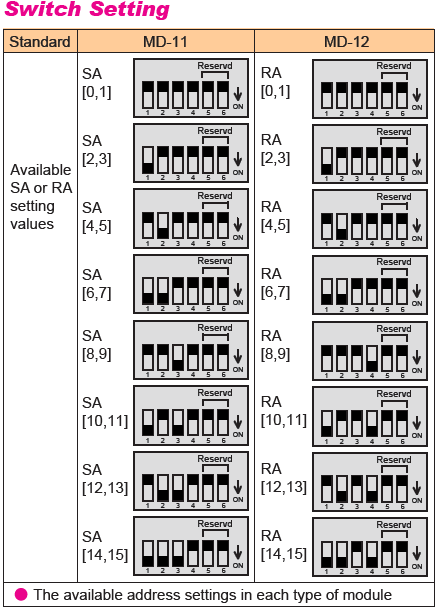

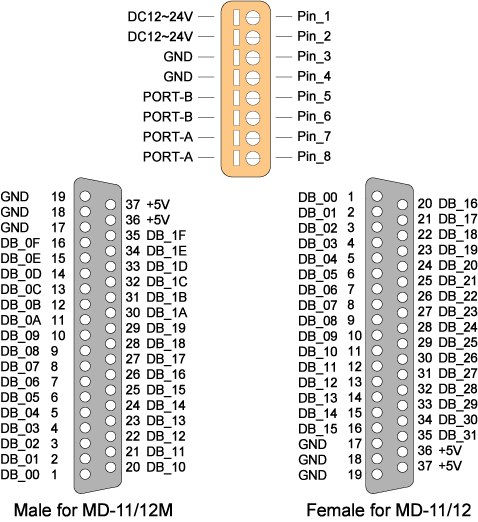

  • Connector type:37-pin D-sub female connector (MD-11, MD-12)
  • Power requirements: 12~24V
  • Wire cable: CPEV 0.9S (2P twisted-pair wire)
  • Power consumption: 1.2 W
  • Operating temperature: -25¢XC ~ +75¢XC
  • Operating humidity: 10% ~ 90% RH, non-condensing
  • Storage temperature: -30¢XC ~ +85¢XC
  • Storage humidity: 5% ~ 95% RH, non-condensing
  • Dimensions: 76 mm x 73 mm x 15 mm





MD-11    Input type MagicWire for I-8000
MD-12    Output type MagicWire for I-8000




PWR-24/110    Power adapter; 110VAC/60Hz input; 24VDC/200mA output
PWR-24/220F    Power adapter; 220VAC/60Hz input; 24VDC/200mA output
PWR-24/230R    Power adapter; Round type plug; 220VAC/60Hz input; 24VDC/200mA output
