ET-7018Z
10-channel Thermocouple Input with High Voltage Protection and 6-channel Isolated Output Module |
 |
 |
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The ET-7018Z, a web-based Ethernet I/O module, features a built-in web server, which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Besides, with the web HMI function, no more programming or HTML skills are needed; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7018Z offers easy and safe access for users from anytime and anywhere! In addition, ET-7018Z also supports Modbus/TCP protocol that makes seamless integration to SCADA software.
The ET-7018Z is a 16-bit, 10-channel differential analog inputs and 6-channel digital ouputs module that provides programmable input range on all analog channels(+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA and thermpocouples) and digital output can be set alarm output. Each analog channel is allowed to configure an individual range and has 240 VAC high over voltage protection. more...
|
|
|
| |
|
|
|
|
|
| |
back |
|
 |
|
|
| |
|
|
| |
| CPU |
| CPU |
80186 CPU (80MHz) |
| SRAM |
512K Bytes |
| Flash Memory |
512K Bytes |
| EEPROM |
16K Bytes |
| Dual Watchdog |
Yes |
| Communication |
| Ethernet Port |
10 / 100 Base-TX (With Link, Activity LED Indicator)
Automatic MDI/MDI-X |
| Analog Input |
| Input Channels |
10 Differential |
| Input Type |
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
+/-20 mA, 0~20 mA, 4~20 mA (Requires Optional External 125 Ohms Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710) |
| Resolution |
16-bit |
| Sampling Rate |
10 samples/Sec. total |
| Accuracy |
+/-0.1% or better |
| BandWidth |
15.7 Hz |
| Zero drift |
+/-0.5 £gV/¢XC |
| Span drift |
+/-25 ppm/¢XC |
| Input Impedance |
>300K Ohms |
| Common Mode Rejection |
150 dB min. |
| Normal Mode Rejection |
100 dB |
| Open Thermocouple Detection |
Yes |
| Individual Channel Configuration |
Yes |
| Over Voltage Protection |
240 Vrms |
| ESD Protection |
4kV Contact for each terminal, and 8KV Air for random point |
| EFT Protection |
4kV for Power |
| Digital Output |
| Output Channels |
6 (Sink) |
| Output Type |
Isolated Open-Collector |
| Max Load Current |
700mA/Channel |
| Load Voltage |
5 ~ 50 VDC |
| DB-1820 |
| Wire Strip Length |
4~5 mm |
| Wire Range |
16~24 AWG |
| 2 Way Isolation |
| Ethernet |
1500V DC |
| AI and DO |
2500V DC |
| Mounting |
| Din Rail Mount |
Yes |
| Wall Mount |
Yes |
| LED Display |
| L1 LED as Run indicator, L2 LED as Link/Act indicator, L3 LED as 10/100M indicator |
| Power Requirements |
| Protection |
Power reverse polarity protection |
| Required Supply Voltage |
10 VDC ~ 30 VDC (non-regulated) |
| Power consumption |
0.09 A/24 VDC |
| Environment |
| Operating Temperature |
-25¢XC to +75¢XC |
| Storage Temperature |
-30¢XC to +80¢XC |
| Relative Humidity |
5 to 90% RH, non-condensing |
| Dimensions |
| Dimensions( W x H x D) |
123 mm x 72 mm x 35 mm |
|
|
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| Type |
Range (¢XC) |
| J |
-210 ~ +760 |
| K |
-270 ~ +1372 |
| T |
-270 ~ +400 |
| E |
-270 ~ +1000 |
| R |
0 ~ +1768 |
| S |
0 ~ +1768 |
| B |
0 ~ +1820 |
| N |
-270 ~ 1300 |
| C |
0 ~ 2320 |
| L |
-200 ~ +800 |
| M |
-200 ~ +100 |
| L (DIN43710) |
-200 ~ +900 |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
 |
 |
 |
 |

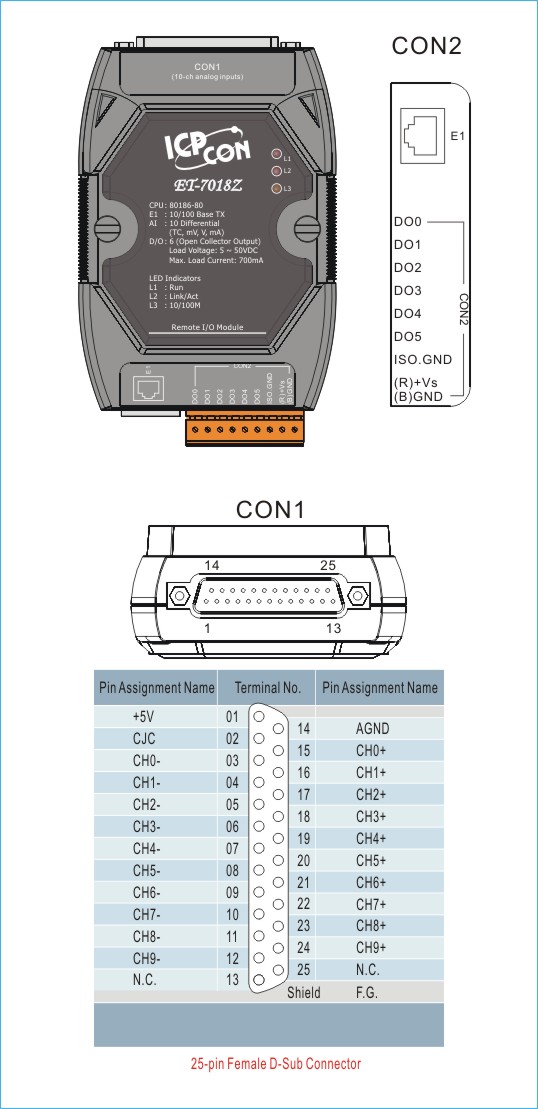

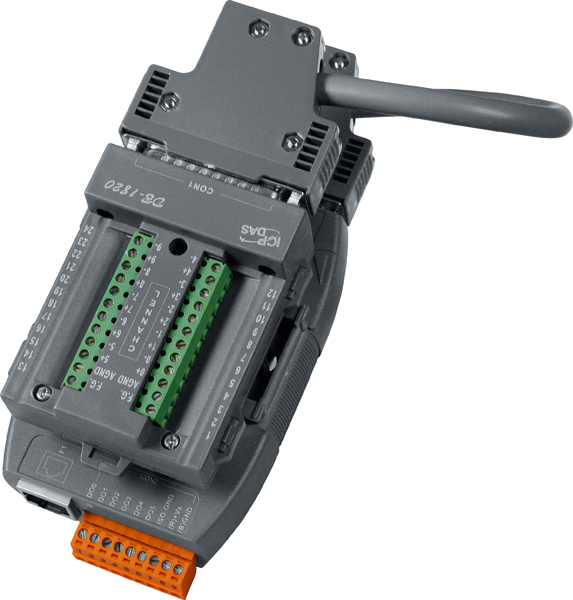

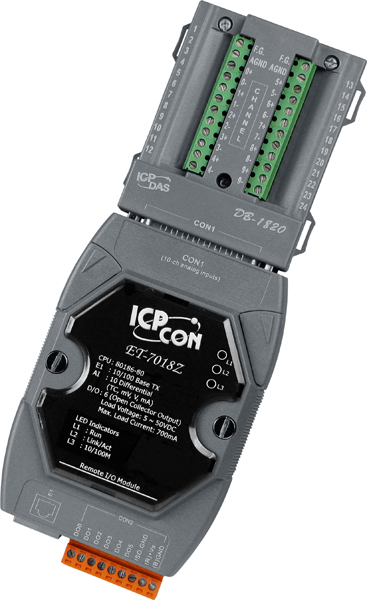

| ET-7018Z connects DB-1820 directly |

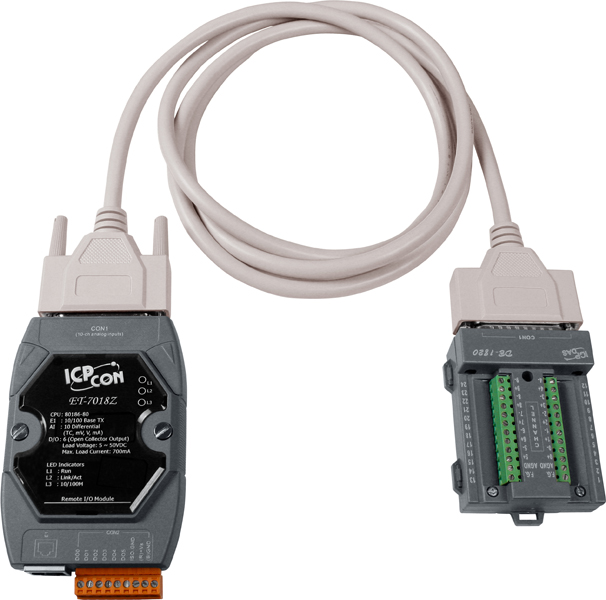

ET-7018Z connect DB-1820 with
CD-2518D kit |
ET-7018Z connect DB-1820 with
CD-25015 kit |

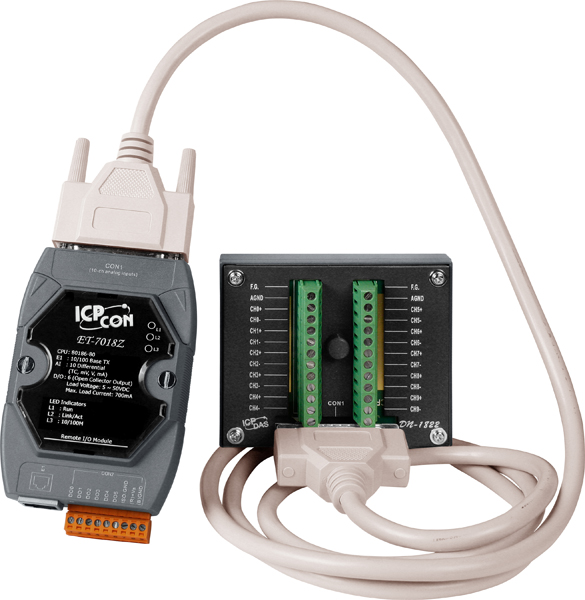

ET-7018Z connect DN-1822 with
CD-2518D kit |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| ET-7018Z-G/S CR |
10-channel Thermocouple Input Module with High Voltage Protection (RoHS)
include ET-7018Z module and DB-1820 daughter board |
| ET-7018Z-G/S2 CR |
10-channel Thermocouple Input Module with High Voltage Protection (RoHS)
include ET-7018Z module and DN-1822 daughter board and 1.8m cable |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| GPSU06U-6 |
24V/0.25A output power supply |
| MDR-20-24 |
24V/1A output power supply with DIN-Rail |
| NS-205 CR |
Unmanaged 5-Port Industrial Ethernet Switch |
| CD-2518D |
25F-25M 1.8m cable with DIN-Rail Mount of DB-1820 |
| CD-25015 |
25F-25M 15cm cable with DIN-Rail Mount of DB-1820 |
|
|
| |
|
|
|
|
|
| |
