LP-8081, LP-8381, LP-8781
Selection Guide of Standard LinPAC-8000 Programmable Automation Controller |
|
|
| |
| |
|
|
| ~NEW~ |
~NEW~ |
~NEW~ |
 |
 |
 |
| Model: LP-8081 |
Model: LP-8381 |

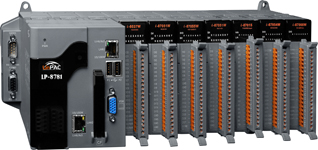

Model: LP-8781 |
|
| |
|
| |
LinPAC-8x81 is the second generation PAC from ICP DAS and is equipped with a LX800 CPU (500 MHz) running a Linux 2.6.18 operating system, various connectivity (VGA, USB, Ethernet and RS-232/485) and 0/3/7 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K series).
User's programs can be saved in external storage device, such as CF Card, USB device or RAM via ethernet. LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/8000/87k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly. With LP-8x81 series, users can achieve the redundancy function and it will make the whole control system safer. |
| |
|
|
|
| |
back |
| |
|
| |
|
| |
[ Development Environment ]
LinPAC SDK :
ICP DAS provides the library file ¡Ð libi8k.a which includes all the functions of the I-7000/8000/87k series modules. Users can develop LinPAC-8x81 Applications easily by GNU C Language.
[ Built-in Server ]
Web Server :
Through these servers, users active web pages can be placed in the LinPAC and make LinPAC be a Web Site.
Telnet Server, SSH Server:
Through these servers, users can remote control and transfer files with LinPAC by encrypting mode.
[ Security ]
Unique Serial Number:
As soon as ¡§Unique Serial Number¡¨ added in users¡¦ program, then users¡¦ program will be locked for this LinPAC.
[ Interpreter ]
Perl, PHP :
The program written by Perl and PHP interpret language can be also executed in the LinPAC.
[ GUI ]
GTK+ Library
Users can write LinPAC GUI programs by using GTK+ library.
[ Other ]
Dual Watchdog Timer
Built-In Flash Disk (4GB)
Dual Battery-Backup SRAM (512KB)
There are one resolution mode supported in the LinPAC. |
|
| |
|
|
|
| |
back |
| |
|
| |
|
| |
| Models |
LP-8081 |
LP-8381 |
LP-8781 |
| System Software |
| OS |
Linux kernel 2.6.18 |
| Embedded Service |
Web Server, Telnet Server, SSH Server |
| SDK Provided |
Standard LinPAC SDK for Linux by GNU C language |
| CPU Module |
| CPU |
AMD LX800 processor (32-bit and 500 MHz) |
| System Memory |
1 GB RAM |
| Dual Battery Backup SRAM |
512 KB (for 5 years data retain) |
| Flash |
4 GB as IDE Master |
| EEPROM |
16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| CF Card |
8 GB (support up to 32 GB) |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timers |
Yes |
| Programmable LED Indicator |
1 |
| Rotary Switch |
Yes (0~9) |
| DIP Switch |
- |
Yes (8 bits) |
Yes (8 bits) |
| VGA & Communication Ports |
| VGA |
640 x 480 ~ 1024 x 768 |
| Ethernet Port |
RJ-45 x 2, 10/100 Base-TX Ethernet Controller
(Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| USB 1.1 (host) |
2 |
| COM1 |
- |
Internal communication with I-87K modules in slots |
| COM2 |
RS-232 (RxD, TxD and GND); Non-isolated |
| COM3 |
RS-485 |
D2+,D2-;self-tuner ASIC inside |
| Isolation |
3000 VDC |
| COM4 |
RS-232 (RxD, TxD,
CTS, RTS, DSR, DTR,
CD, RI and GND);
Non-isolated |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND forData- for RS-485); RS-232, Data+ and Data- for RS-485); Non-isolated |
| COM5 |
- |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated |
| I/O expansion slots (Supports high profile I-8K and I-87K modules only) |
| Slot Number |
0 slot |
3 slots |
7 slots |
| Hot Swap * Will be available |
I/O Module Hot Swap Ability for High Profile I-87K Modules Only |
| Mechanical |
| Dimensions (W x L x H) |
137 mm x 132 mm x 125 mm |
231 mm x 132 mm x 125 mm |
355 mm x 132 mm x 125 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 ¢XC |
| Storage Temperature |
-30 ~ +85 ¢XC |
| Ambient Relative Humidity |
5 ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Input |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
1.8 A, 5 V supply to CPU and backplane, total 15 W |
1.8 A, 5 V supply to CPU and backplane, 5.2 A, 5 V supply to I/O expansion slots, total 35 W |
2.0 A, 5 V supply to CPU and backplane, 5.0 A, 5 V supply to I/O
expansion slots, total 35W |
| Consumption |
14.4 W (0.6 A @ 24 VDC) |
14.4 W (0.6 A @ 24 VDC) |
16.8 W (0.7 A @ 24 VDC) |
|
| |
|
|
|
| |
back |
| |
|
| |
|
| |
| LP-8081 |
Standard LinPAC-8000 with 0 I/O slots ( English version of OS ) |
| LP-8381 |
Standard LinPAC-8000 with 3 I/O slots ( English version of OS ) |
| LP-8781 |
Standard LinPAC-8000 with 7 I/O slots ( English version of OS ) |
|
| |
|
|
|
| |
