PISO-730A
32-channel TTL-level digital I/O ,16-channel Optically Isolated Digital Input and 16 Open-Collector Digital Output Board(Current Sinking) |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The PISO-730A provides 32 channels isolated digital I/O (16’DI and 16’DO) and 32 channels TTL-level digital I/O (16’DI and 16’DO). Each digital output offers a PNP transistor and integral suppression diode for inductive load. The board interface to field logic signals, eliminating ground-loop problems and isolating the host PC from damaging voltages. Its isolated I/O channels provide up to 3750Vdc of protection. The PISO-730A has one 37-pin D-type connector and two 20-pin flat-cable connectors. The flat-cable can be connected to ADP-20/PCI adapter. The adapter can be fixed on the chassis. It can be installed in a 5V PCI slot and can support truly “Plug and Play”. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- PCI Bus
- 16 isolated DI/DO channels
- 32 TTL-level DIO channels (16 x DI & 16 x DO)
- DC/DC converter built-in

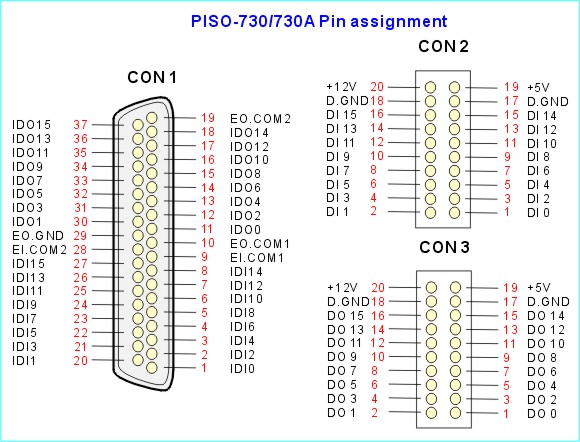

- One DB-37 D-type connector for isolation input and output
- Two separate 20-pin connectors for non-isolated input and output channels.
- 3750Vdc isolation voltage
- n Interrupt: 2 channels
- 5V PCI board
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Factory automation
- Product test
- Laboratory automation
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- LabVIEW toolkit for Windows
|
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Driver for LINUX
- Driver for DasyLab
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Isolated Digital Input |
16 Optical-isolated inputs
|
|
photo coupler Isolated input
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Isolated Digital Output |
16 optical-isolated outputs
|
|
open-collector 10 to 30 Vdc
|
|
|
|
|
|
|
|
|
|
|
|
| Power |
|
|
| Environmental |
Operating temperature |
0~60°C |
Storage temperature |
-20°C~70°C |
Humidity |
0 to 90% non-condensing |
| Dimensions |
Dimensions |
180mm x 105mm |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| PISO-730A |
32-channel TTL-level digital I/O ,16-channel Optically Isolated Digital Input and 16 Open-Collector Digital Output Board (Current Sinking)
Includes one CA-4002 D-Sub connector. |
| PISO-730A CR |
32-channel TTL-level digital I/O ,16-channel Optically Isolated Digital Input and 16 Open-Collector Digital Output Board (Current Sinking) (RoHS)
Includes one CA-4002 D-Sub connector. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
|
|
|
|
| |
|
|
|
|
|
| |
