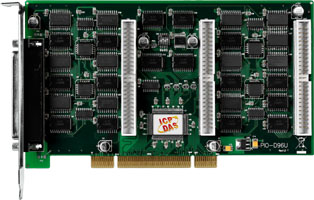

PIO-D96U
Universal PCI, 96-channel OPTO-22 Compatible DIO Board |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The PIO-D96U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PIO-D96U card is designed as a drop-in replacement for the PIO-D96, and users can replace the PIO-D96 by the PIO-D96U directly without software/driver modification.
The PIO-D96U universal PCI card supports 3.3 V/5 V PCI bus while the PIO-D96 supports 5 V PCI bus. These cards provide 96 TTL digital I/O lines that consist of twelve 8-bit bi-direction ports. Every three ports on a connector are grouped and named as port A (PA), port B (PB) and port C (PC) respectively. All ports are configured as inputs upon power-up or reset.
The PIO-D96U also adds a Card ID switch on-board. Users can set Card ID and then recognize the board by the ID via software when using two or more PIO-D96U cards in one computer.
The PIO-D96/D96U supports various OS such as Linux, DOS, Windows 98/NT/2000 and 32-bit Windows XP/2003/Vista/7. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Support the +5V PCI bus for PIO-D96
- Support the +3.3/+5 V PCI bus for PIO-D96U
- 96 channels of digital I/O
- Bi-direction programmable I/O ports under software control
- All I/O lines buffered on the board
- Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards
- One 32-bit programmable internal timer
- One DB37 connector, three 50-pin box headers
- Interrupt source: 4-channel
- Card ID function for PIO-D96U
- Buffer output for higher driving capability
- DIO response time is about 0.77 £gs (1.3 MHz max.)
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7.
- VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Model Name |
PIO-D96 |
PIO-D96U |
| Programmable Digital I/O |
| Channels |
96 |
| Digital Input |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.2 MHz (Typical) |
| Digital Output |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 64 mA @ 0.8 V
Source: 32 mA @ 2.0 V |
| Response Speed |
1.2 MHz (Typical) |
| General |
| Bus Type |
5 V PCI, 32-bit, 33 MHz |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Card ID |
No |
Yes(4-bit) |
| I/O Connector |
Female DB37 x 1
50-pin box header x 3 |
| Dimensions (L x W x D) |
180 mm x 105 mm x 22mm |
| Power Consumption |
600 mA @ +5 V |
| Operating Temperature |
0 ~ 60 ¢XC |
| Storage Temperature |
-20 ~ 70 ¢XC |
| Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
PIO-D96 |
PCI bus 96-channel OPTO-22 DIO board |
PIO-D96 CR |
PCI bus 96-channel OPTO-22 DIO board (RoHS) |
| PIO-D96U CR |
Universal PCI, 96-channel DIO board (RoHS) |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-5002 |
50-pin flat cable 20 cm |
| CA-5015 |
50-pin flat cable 1.5 M |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
| CA-3710DM |
DB-37 Male-Male Cable, 1.0 M, 180¢X. (RoHS) |
| CA-3730DM |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
| CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| ADP-37/PCI |
50-pin connector extender to 37-pin connector |
| DB-24PD |
24-channel of isolated D/I board |
| DB-24RD |
24-channel of relay board |
| DB-24PRD |
24-channel of power
relay board |
| DB-24POR |
24-channel of PhotoMos
Relay output board |
| DB-24SSR |
24-channel of Solid
State Relay output board |
| DB-24C |
24-channel of open-collector output board |
|
|
|
|
| |
|
|
|
|
|
| |
