PIO-D144
PCI
BUS 144-channel OPTO-22 DIO Board |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The
PIO-D144 provides 144 TTL digital I/O lines. The PIO-D144 consists
of eighteen 8-bit bi-direction ports. The 8 bit port are named
port A (PA), port B (PB),port C (PC). All port is configured as
inputs upon power-up or reset. The PIO-D144 has one D-Sub connector
and five 50-pin flat cable connectors, Each header can connect
to a 50-pin flat cable. The flat cable can be connected to ADP-37/
PCI or ADP-50/ PCI adapter. The adapter can be fixed on the chassis.
Refer to the above figure. It can be installed in a 5 V PCI bus
and can support truly "Plug & Play" |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Double side SMT, short card, power saving
- Connect directly to DB-24P,DB-24R, DB-24PR, DB-24SSR, DB-24POR and other OPTO-22 compatible daughter board
- 144 I/O Lines
- Emulate 6Industrial standard 8255 mode 0
- Programmable interrupt
- Five 50-pin falt cable connectors & one 37-pin
- Interrupt handing capability
- Output status readback
- DIO response time is about 0.77 us (1.3 MHz max.)
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- LabVIEW toolkit for Windows
|
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Driver for LINUX
- Driver for DasyLab
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| PC compatible PCI bus |

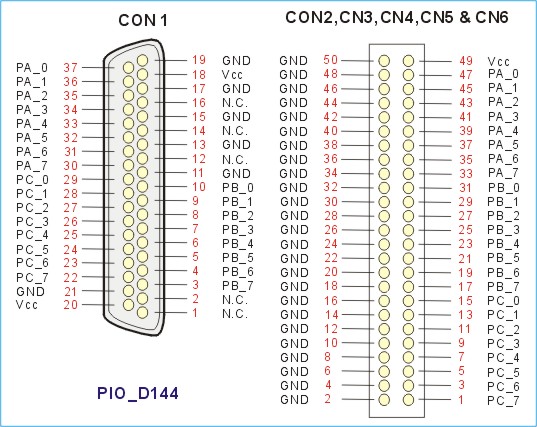

| One DB-37 connector and six 50-pin flat-cable connectors |
| Each connector consists of three 8-bit port, PA, PB & PC in every connector |
| Each port can be programmed as D/I or D/O independently. |
| Each board = 6connector = 6*3 port = 6*3*8 bit =144 bit |
| 4 interrupt sources : CN1 PC0,PC1,PC2,PC3 |
| All signals are TTL compatible |
| Power |
|
|
| Environmental |
Operating temperature |
0~60¢XC |
Storage temperature |
-20¢XC~70¢XC |
Humidity |
0 to 90% non-condensing |
| Dimensions |
Dimensions |
180 mm x 105 mm |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| PIO-D144 |
PCI bus 144-channel OPTO-22 DIO board |
| PIO-D144 CR |
PCI bus 144-channel OPTO-22 DIO board (RoHS) |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| DB-24PD |
24-channel of isolated D/I board |
| DB-24RD |
24-channel of relay board |
| DB-24PRD |
24-channel of power
relay board |
| DB-24POR |
24-channel of PhotoMos
Relay output board |
| DB-24SSR |
24-channel of Solid
State Relay output board |
| DB-24C |
24-channel of open-collector output board |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
