PCI-M512/PCI-M512U
PCI-M512: PCI, 512KB Memory Board with DI / DO
PCI-M512U: Universal PCI, 512KB Memory Board with DI / DO |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The PCI-M512/PCI-M512U provides battery-backup 512 KB SRAM, 12-bit DI and 16-bit DO. In addition, the PCI-M512U supports both 5 V and 3.3 V PCI bus, while the PCI-M512 supports 5 V PCI bus only. The PCI-M512U (Universal PCI version) is designed as a drop-in replacement for the PCI-M512 (PCI version), so users can replace a PCI-M512 by a PCI-M512U directly without any software or driver modification.

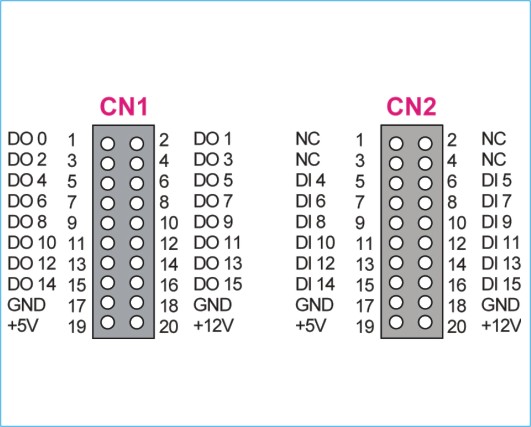

Users can use the DB-16P to connect the input ports (CN2) for isolation purpose, or use DB-16R to interface to the output ports (CN1) for relay control.
The PCI-M512/PCI-M512U is equipped with two Li-batteries to maintain the content of the 512 KB SRAM when PC power loss occurs. The two Li-batteries can continue supplying power to the SRAM to retain the important data for 10 years. The two-battery design also makes it safe to replace new batteries without losing data; when one battery is taken out for replacing a new one, the other continues to provide power to the SRAM.
4 LED indicators on the board are provided for giving clear understanding of the battery states such as normal, low voltage or fault. The PCI-M512/PCI-M512U is an ideal solution for improving system reliability. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- On-board 512 KB SRAM
- Two Li-batteries, BT1 & BT2, for dual battery-backup the data of the SRAM
- LED indicators for Li-batteries states: normal, low voltage, fault
- 16-bit general purpose TTL-compatible D/O
- 12-bit general purpose TTL-compatible D/I (DI4 ~ 15)
- 4-bit battery status read back (DI0 ~ 3)
[PCI-M512 only] - PCI card, supports 5 V PCI bus.
[PCI-M512U only] - Universal PCI card, supports both 5 V and 3.3 V PCI bus.
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Model |
PCI-M512 |
PCI-M512U |
| Digital Input |
| Channels |
12 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.4 MHz(Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
1.4 MHz(Typical) |
| Special |
| SRAM Size |
512 KB |
| Li-Battery |
BT1 & BT2 |
| Battery Status bits |
BT1 Low, BT1 Bad, BT2 Low, BT2 Bad(low voltage=2.3 V, bad voltage=2.1 V) |
| LED Indicators |
BT1 Low (Green), BT1 Bad (Red) BT2 Low (Green), BT2 Bad (Red) |
| General |
| Bus Type |
5 V PCI, 32-bit, 33 MHz |
3.3 V / 5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit(DI/DO) ,32-bit(Memory) |
| I/O Connector |
Male 20-bit ribbon x 2 |
| Dimensions (L x W) |
140 mm x 90 mm |
| Power Consumption |
420 mA @ +5 V |
| Accuracy |
0.01 % of FSR +/- 1 LSB |
| Operating Temperature |
-20 ~ 60 ¢XC |
| Storage Temperature |
-40 ~ 85 ¢XC |
| Humidity |
0 ~ 90% RH, non-condensing |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
