ICP DAS New Product: tGW-712
Tiny Modbus/TCP to RTU/ASCII Gateway with PoE and 1 RS-232 Port


Introduction:
Modbus communication has become a de facto standard protocol in industry field, and is one of the most common connection interfaces for industrial electronic devices. Therefore, it is widely used to connect a supervisory computer with remote terminal units (RTU) in supervisory control and data acquisition (SCADA) systems.

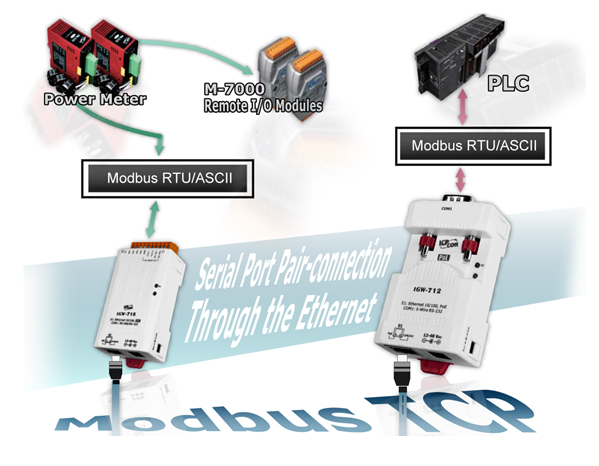

The tGW-712 module is a Modbus TCP to RTU/ASCII gateway that enables a Modbus/TCP host to communicate with serial Modbus RTU/ASCII devices through an Ethernet network, and eliminates the cable length limitation of legacy serial communication devices. Meanwhile, the module can be also used to create a pair-connection application (serial-bridge or serial-tunnel application), then route data over TCP/IP between two serial Modbus RTU/ASCII devices, which is useful when connecting mainframe computers, servers or other serial devices that use Modbus RTU/ASCII protocols but without Ethernet capability.


"Built-in Web server"

The tGW-700 series module features a powerful 32-bit MCU to enable efficient handling of network traffic, and also has a built-in web server that provides an intuitive web management interface to users for modifying the configuration of the module, including the DHCP/Static IP, the gateway/mask settings and the serial port settings.

"Built-in Dual Watchdog"

The module contains a dual watchdog, including a CPU watchdog and a host watchdog. It can automatically reset the CPU while the built-in firmware is operating abnormally or there is no communication between the module and the host (PC or PLC) for a predefined period of time. The dual watchdog is an important feature that ensures the module operates continuously, even in harsh environments.

"Low power consumption"

The tGW-700 series module offers true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) functionality using a standard category 5 Ethernet cable to receive power from a PoE switch. Besides that, the tGW-700 series also accept power input from a DC adapter. The tGW-700 series module is designed for ultra-low power consumption, reducing hidden costs from increasing fuel and electricity prices, especially when you have a huge amount of device servers installed. Reducing the power consumption by choosing tGW-700 series module will have a positive contribution to environment.

Features:
  • Supports Modbus/TCP master and slave
  • Supports Modbus RTU/ASCII master and slave
  • 10/100 Base-TX Ethernet, RJ-45 Port
    (Auto-negotiating, auto MDI/MDI-X, LED indicator)
  • Contains a 32-bit MCU that efficiently handles network traffic



  • Includes a eSearch utility for Windows NT4/2000/XP/2003/2008/Vista and Windows 7 (32/64-bit)



  • Tiny form-factor and low power consumption
  • Cost-effective Modbus/TCP to RTU/ASCII Gateway



  • Watchdog Timer Suitable for Use in Harsh Environments



  • RoHS compliant with no Halogen
  • Made from fire retardant materials (UL94-V0 Level)



  • Includes redundant power inputs: PoE and DC jack
  • Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocol
  • Supports UDP responder for device discovery
  • Allows easy firmware updates via the Ethernet
  • Contains a tiny Web server for configuration
  • Male DB-9 or terminal block connector for easy wiring



  • ODM Service Is Available


For more information, please visit the following web site: tGW Series Main Page
