ISaGRAF PAC New Application
XP-8xx7-CE6 Motion Control Solution

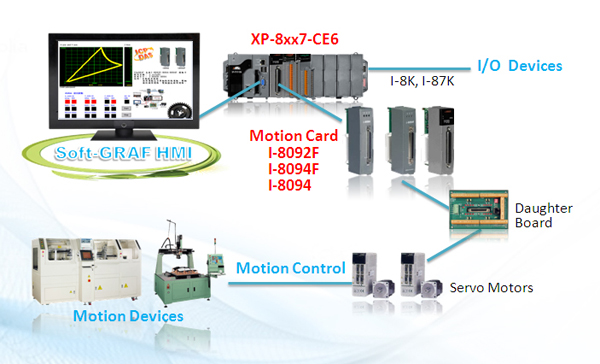

As a "Navigator of PAC", ICP DAS provides a new PAC motion control solution - XP-8xx7-CE6 Motion Control Solution. With the supporting of the ISaGRAF development software plus Soft-GRAF HMI, the XP-8xx7-CE6 plus the I-8094F/8094/8092F motion control solution makes users easily design a professional and user-friendly system with high effective integration in the motion controls, logic controls and I/O device controls.

Features:
  • ISaGRAF provides IEC 61131-3 standard PLC open Syntax :
    The motion control design is easy and professional.

  • Using XPAC-CE6 is more effective than using PLC :
    Using XPAC-CE6 for motion control is more effective to integrate motion controls, logic controls and I/O controls.

  • Support free Soft-GRAF HMI designer :
    Design the control logic & HMI all-in-one.

Motion Functions:
  • Independent 4-axis motion control
  • Support hand wheel and jog functions
  • 2/3-axis linear interpolation function
  • 2-axis circular interpolation function
  • Programmable T/S-curve acceleration and deceleration
  • A maximum of 4M pps pulse output rate for each axis
  • Pulse output types: CW/CCW or Pulse/Direction
  • 32-bit encoder counter for each axis
  • Encoder pulse input types: A/B phase or Up/Down
  • Programmable automatic homing for each axis
  • Position comparison management and software limits
  • Expandable remote I/O: 128 DI and 128 DO via two-wired FRnet interface
  • Require low CPU loading in motion function process
  • Several motion modules can be used in one XPAC-CE6 and other I/O statuses can be monitored at the same time
