	ISaGRAF PAC New Application ISaGRAF PAC connects the Intelligent Power Meter PM-2133/2134



	ISaGRAF PACs support ICP DAS Intelligent Power Meter

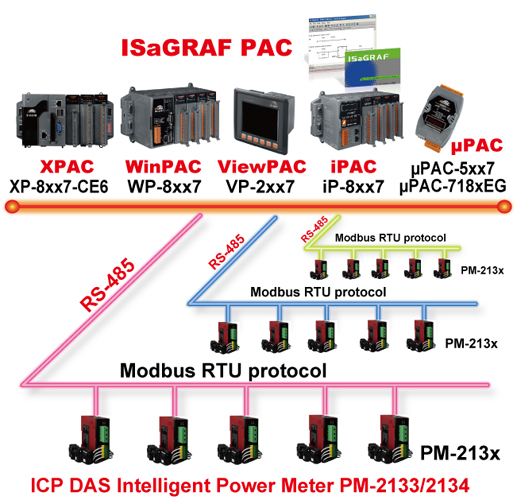

	All ISaGRAF PACs of ICP DAS support the Modbus RTU Master protocol to connect the ICP DAS intelligent power meter - PM-2133 and PM-2134 series (3 Phase/4 Loops 1 Phase Compact Smart Meter). The ISaGRAF PACs use RS-485 ports to connect the PM-213x power meters. One ISaGRAF PAC can use one RS-485 port to connect some PM-213x power meters or use 2 or more RS-485 ports to connect many (>30) power meters. The PM-213x Series is a compact smart meter with the features of wired clip-on CT, long-term steady monitoring/measuring, standard Modbus communication RS-485 protocol. Combining the ISaGRAF PAC and PX-213x, the series’ compact size, easy installing, low cost and flexible usage can be very useful in the modern electric power measurement/monitoring applications, especially for the industrial control/monitor systems that needing intelligent power measurement.

	The Application Features & Scopes of ISaGRAF PAC Plus PM-213x Intelligent Power Meter :
	Support standard Modbus protocol, support multiple RS-485 ports to connect to multiple PM-213x Smart meters For the power measurement control systems in small/medium sized stores, buildings and factories with electric equipments PM-213x smart meter with Wh pulse output is useful in the systems needing to connect the meter tester. PM-213x smart meter with wired clip-on CT is easily wiring for on-line installation, suitable for the uninterruptible power systems. PM-213x is a series of 3 Phase/4 Loops 1 Phase Compact Smart Meter with true RMS energy and power parameters measurement in compact size. The ISaGRAF PACs combining with PM-213x can apply to various control/monitor systems about intelligent electric power measurement.

	Referent information and links :
	About “ISaGRAF PAC how to connect the PM-2133/2134 power meter”, please refer to ISaGRAF FAQ-129 : http://ftp.icpdas.com/pub/cd/wincon_isagraf/napdos/isagraf/wincon/english_manu/faq129.pdf About PM-2133/2134 Smart Meter- specification and data sheet, please refer to www.icpdas.com > Products > Intelligent Power Meter > PM-2133/PM-2134 Series : http://www.icpdas.com/products/intelligence/pm-213x.htm

	Please refer to the following links for more ICP DAS ISaGRAF Products information : ISaGRAF PAC Datasheet : http://www.icpdas.com/products/PAC/i-8000/data sheet/data sheet.htm ISaGRAF PAC Web : http://www.icpdas.com/products/PAC/i-8000/isagraf.htm ISaGRAF PAC Manual : http://www.icpdas.com/products/PAC/i-8000/getting_started_manual.htm ISaGRAF PAC FAQ : http://www.icpdas.com/faq/isagraf.htm I-8K & I-87K high profile I/O modules : http://www.icpdas.com/products/PAC/i-8000/8000_IO_modules.htm
